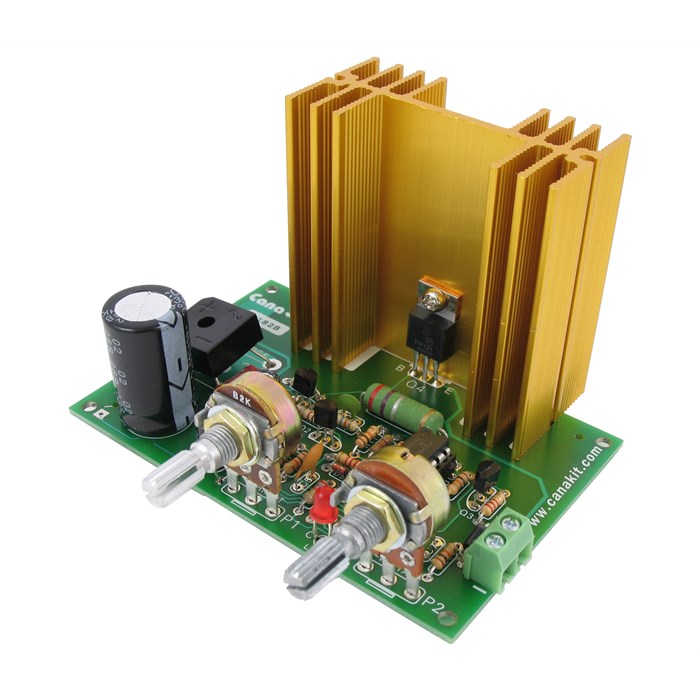

0 - 30V / 0 - 1.5A Regulated Power Supply

More Views

0 - 30V / 0 - 1.5A Regulated Power Supply

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: In stock.

Product Name Price Qty
CK182B - 0 - 30V / 0 - 1.5A Regulated Power Supply (Kit) $35.95
UK182B - 0 - 30V / 0 - 1.5A Regulated Power Supply (Assembled) $45.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 24V AC / 1.5A Transformer

  • Output voltage: adjustable from 0 to 30V DC

  • Output current: adjustable from 0 to 1.5A

  • Regulation: < 0.05%

  • Ripple: < 5mV p.p.

  • Includes heat sink

  • PC board dimensions: 4.30" x 2.57"


    • This circuit is an excellent quality and fully regulated DC power supply that meets the wide range of power requirements necessary for experimenting, project building and electronic repairs. The output voltage can be adjusted from 0 to 30V with maximum current adjustment from 0 to 1.5A. It is also capable of automatically limiting the output current when the output is overloaded or short-circuited.
