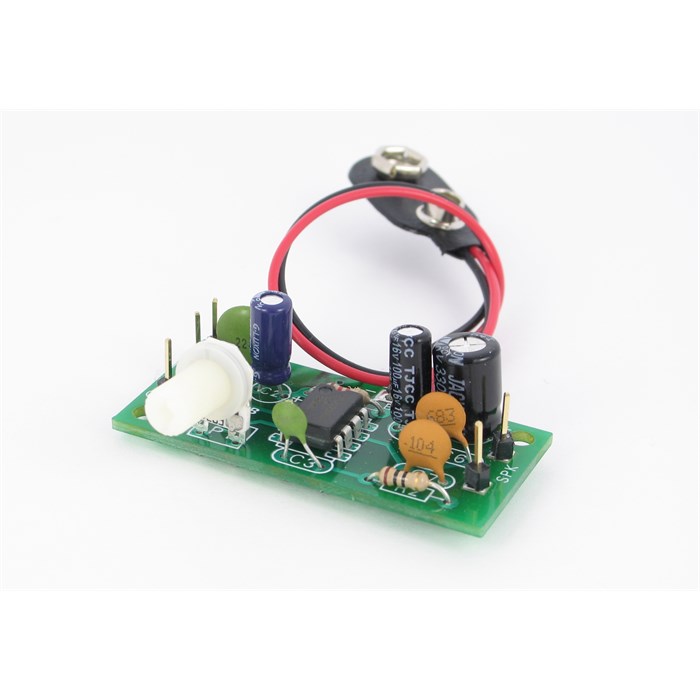

0.5W Universal Mini Amplifier

More Views

0.5W Universal Mini Amplifier

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: In stock.

Product Name Price Qty
CK026 - 0.5W Universal Mini Amplifier (Kit) $11.95
UK026 - 0.5W Universal Mini Amplifier (Assembled) $14.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 9 to 12V DC

  • Includes 9V battery snap

  • Power consumption: < 10mA (stand-by mode)

  • Input sensitivity: 50mV

  • Can be connected to a telephone line

  • Output power: 500mW Max.

  • PC board dimensions: 1.7" x 1.2" (43mm x 30mm)


  • This circuit is a universal amplifier which can be used in many applications such as telephone amplifier, head-phone amplifier (mono), and general audio signal amplification. The circuit is based around the popular power amplifier IC LM386 capable of delivering 0.5W of audio power. The circuit's quiescent (stand-by) current consumption is under 10mA and is therefore ideal for battery operation. It's perfect for any of those projects that need an inexpensive and efficient amplifier that takes up minimal space. Due to its simplicity it is a great circuit for beginners and is very easy to assemble.
