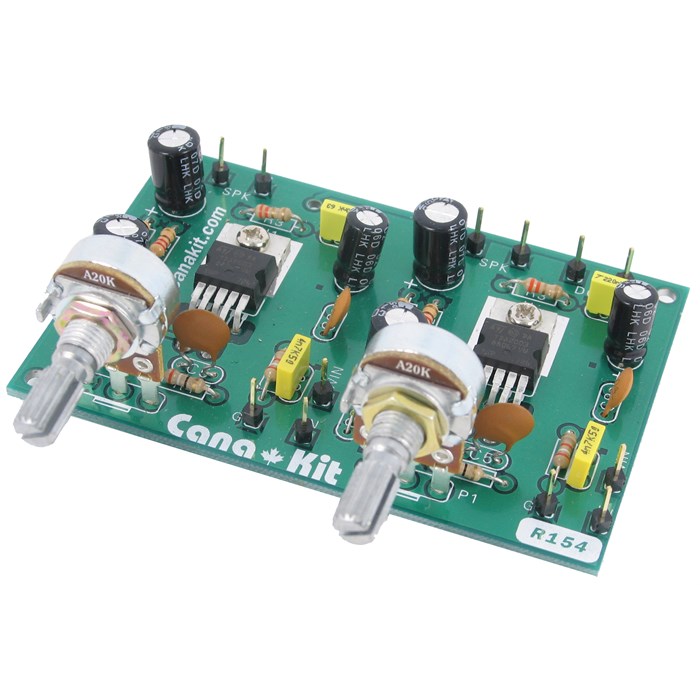

14W Stereo Audio Amplifier

More Views

14W Stereo Audio Amplifier

Email to a Friend

Be the first to review this product

Availability: In stock.

Product Name Price Qty
CK154 - 14W Stereo Audio Amplifier (Kit) $25.95
UK154 - 14W Stereo Audio Amplifier (Assembled) $33.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 12 to 16V DC / 1A

  • Based on two TBA810 Integrated Circuits

  • Input sensitivity: 100mV / 47K Ohm

  • Output power: 2 x 7W Max. / 4 Ohm

  • Frequency response: 40Hz to 18KHz (-3dB)

  • Includes volume controls

  • PC board dimensions: 3.45" x 2.26"


  • This circuit can change your Walkman into a stereo system with enough power to fill a large room with stereo sound. Features include temperature compensation, output short-circuit and overload protection. In addition, the circuit has low/high impedance inputs which can be connected to any stereo audio source such as a Walkman, portable CD player, MP3 player, etc.
