2-Program (Dot or Bar) 10-LED VU-Meter

More Views

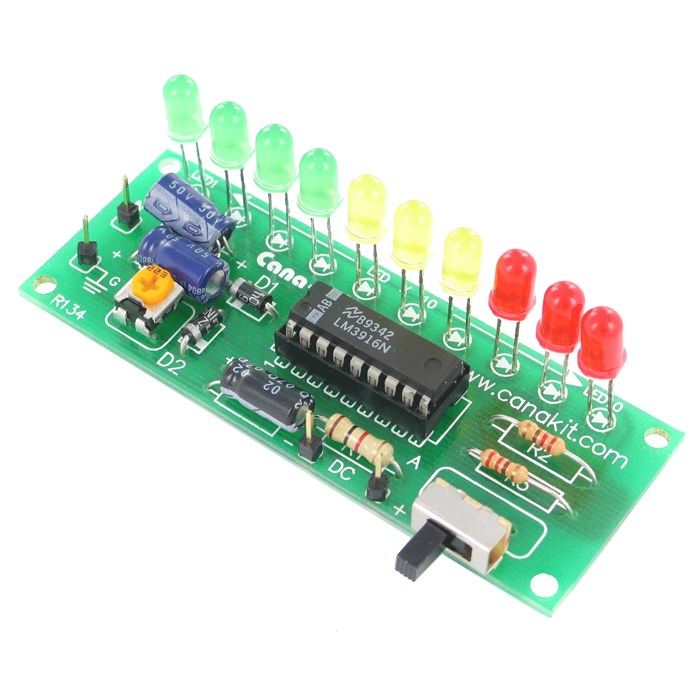

2-Program (Dot or Bar) 10-LED VU-Meter

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: In stock.

Product Name Price Qty
CK134 - 2-Program (Dot or Bar) 10-LED VU-Meter (Kit) $22.95
UK134 - 2-Program (Dot or Bar) 10-LED VU-Meter (Assembled) $28.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 6 to 18V DC / 100mA

  • Based on the LM3916 Integrated Circuit


    • This audio level indicator uses 10 LEDs and features two programs: "BAR" and "DOT". The circuit is based around the LM3916 monolithic Integrated Circuit that senses analog voltage levels and drives the ten LEDs, providing an electronic version of the popular VU meter. The input sensitivity can be adjusted and therefore it can be used with power amplifiers from 1 to 50 Watts.
