20W Bridged Audio Amplifier

More Views

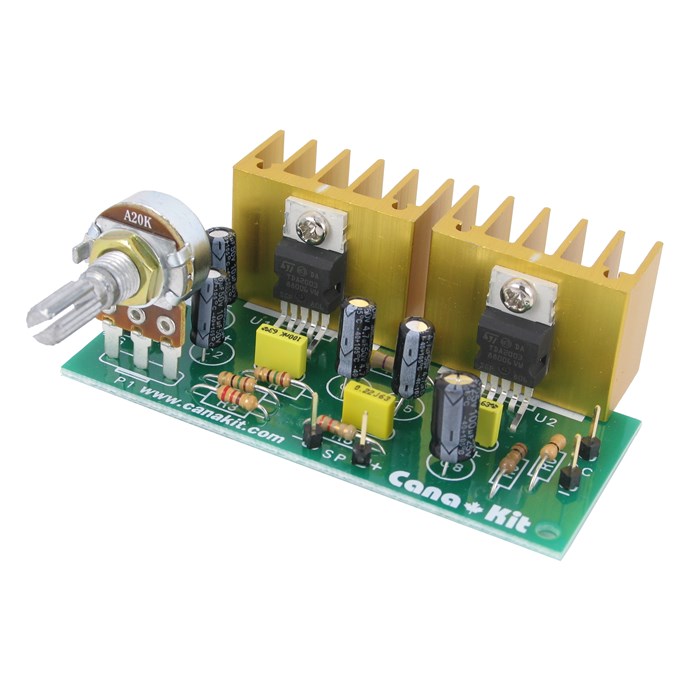

20W Bridged Audio Amplifier

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: In stock.

Product Name Price Qty
CK193 - 20W Bridged Audio Amplifier (Kit) $17.95
UK193 - 20W Bridged Audio Amplifier (Assembled) $27.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 12 to 18V DC / 2A

  • Based on two TDA2003 Integrated Circuits

  • Input sensitivity: 100mV / 47K Ohm

  • Output power using 18V DC supply:
    Music power: > 22W / 4 Ohm
    RMS power: 16W / 4 Ohm or 12W / 8 Ohm

  • Frequency response: 30Hz to 20KHz (-3dB)

  • Includes two gold-anodized heat sinks

  • Includes volume control


  • This is a compact, yet powerful audio amplifier using two TDA2003 monolithic Integrated Circuits connected in bridged configuration to achieve more output power at 12V DC supply. It can deliver more than 20W of music power into a 4-Ohm speaker and is ideal for any kind of audio amplification application.
