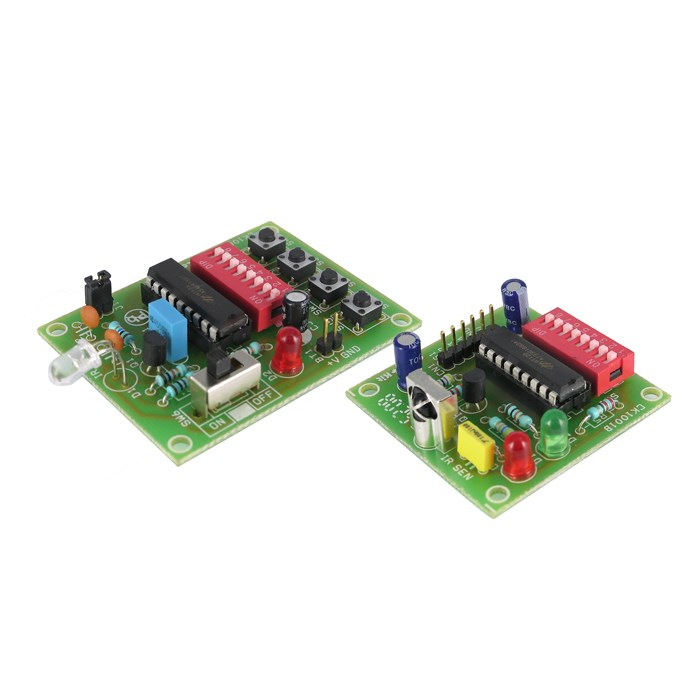

4 Channel Infrared (IR) Remote Control

Email to a Friend

Availability: Out of stock.

Product Name	Price
CK1001 - 4 Channel Infrared (IR) Remote Control (Kit)	$29.95
UK1001 - 4 Channel Infrared (IR) Remote Control (Module)	$39.95

Supply - Transmitter : 2.4 ~ 5 VDC, 5 V @ 20 mA & Receiver : 5 ~ 6 VDC, 5 V @ 50 mA

Output - 4 Latch/Momentary TTL compatible output

Crystal based oscillator for reliability of operation

DIP switch selectable 8 bit address code

LED output to indicate reception

ON/OFF slide switch in the transmitter

Power-On LED indicator in the Receiver / Transmitter

High noise immunity

Berg connector for interfacing of the board

Four mounting holes of 3.2 mm each

PCB dimensions - Transmitter : 61 mm x 47 mm & Receiver : 46 mm x 46 mm

4 Channel Infrared (IR) Remote is a simple kit using the famous HT12A and HT12D encoder / decoder chips from Holtek.
