5-LED DC Voltage Monitor

5-LED DC Voltage Monitor

Email to a Friend

Be the first to review this product

Availability: In stock.

Product Name Price Qty
CK005 - 5-LED DC Voltage Monitor (Kit) $11.95
UK005 - 5-LED DC Voltage Monitor (Assembled) $14.95
Add Items to Cart Add to Cart

Quick Overview

  • No power supply required

  • Uses 5 LEDs to indicate voltage

  • Monitoring voltage range:

  • 6 to 10V DC or 9 to 13V DC

  • PC board dimensions: 2.5" x 0.8" (64mm x 20mm)

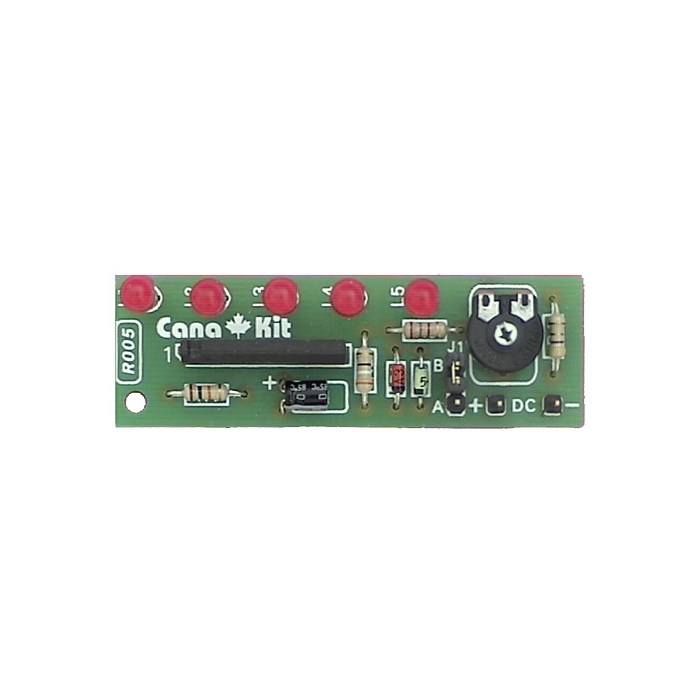

    • This circuit is a handy "visual" DC voltage monitor constructed using 5 LEDs and an Integrated Circuit. It measures DC voltages from 6 to 10V DC or 9 to 13V DC. It does not need a power supply since it is supplied by the voltage under measurement. It is ideally suited for applications such as monitoring car battery voltage.
