555 Stepper Motor Pulse Generator

More Views

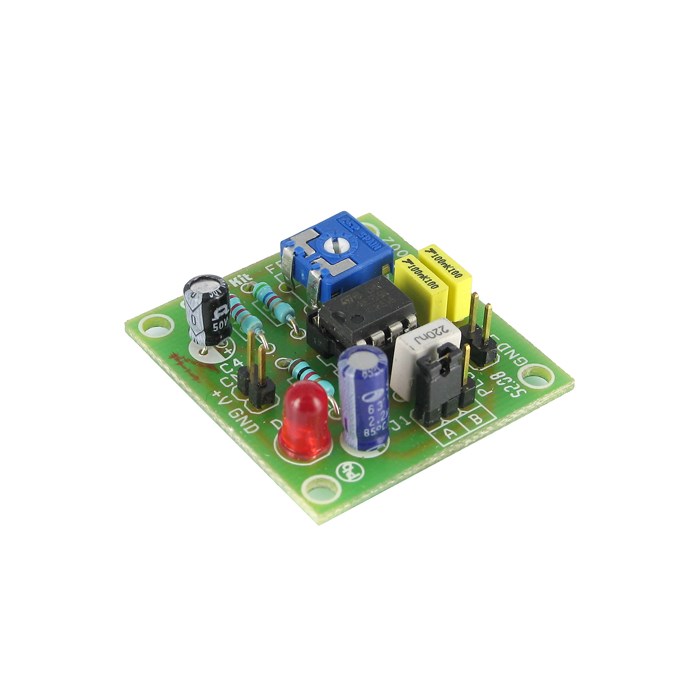

555 Stepper Motor Pulse Generator

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: Out of stock.

Product Name Price
CK1002 - 555 Stepper Motor Pulse Generator (Kit) $9.95
UK1002 - 555 Stepper Motor Pulse Generator (Assembled) $14.95

Quick Overview

  • Input : 5 to 12 VDC @ 25 mA
  • TTL/CMOS interfaceable
  • Jumper selectable two speed operation
  • Onboard preset to vary the frequency
  • Power-On LED indicator
  • Terminal pins for easy interfacing of the kit
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 39 mm x 37 mm


    • The 555 Stepper Motor Pulse Generator kit will help you with the pulse required to drive your favorite DC Servo Motor application. This kit uses the famous 555 timer IC for generating the Stepping Pulse.
