5W Audio Amplifier

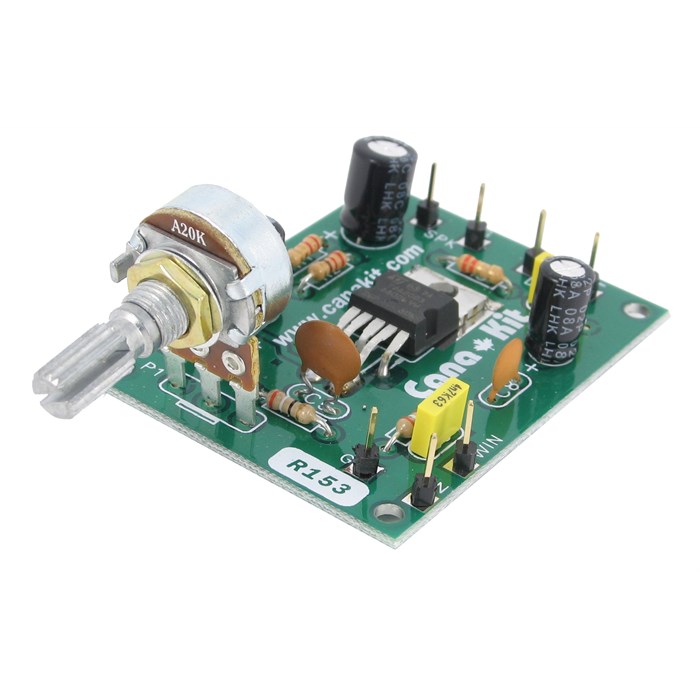

5W Audio Amplifier

Email to a Friend

Be the first to review this product

Availability: In stock.

Product Name Price Qty
CK153 - 5W Audio Amplifier (Kit) $15.95
UK153 - 5W Audio Amplifier (Assembled) $22.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 12 to 16V DC / 0.5A

  • Based on the TBA810 Integrated Circuit

  • Input sensitivity: 100mV / 47K Ohm

  • Output power: 7W Max. / 4 Ohm

  • Frequency response: 40Hz to 18KHz (-3dB)

  • Includes volume control

  • PC board dimensions: 1.75" x 2.25"


    • This circuit is a compact design AF amplifier based on the TBA810 Integrated Circuit. Its low consumption and compact dimensions make it ideal for all kinds of audio amplification applications. The circuit incorporates an overload protection circuit and volume control. In addition, the circuit has low/high impedance inputs which can be connected to any audio source.
