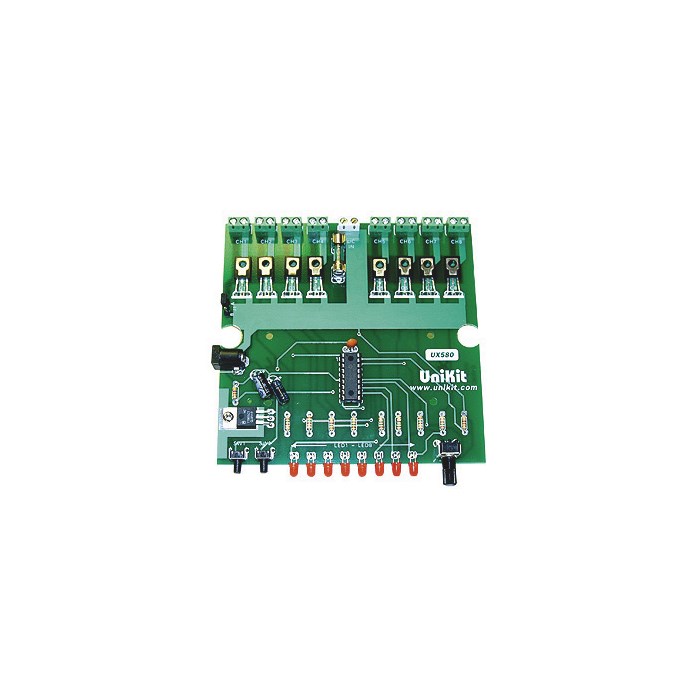

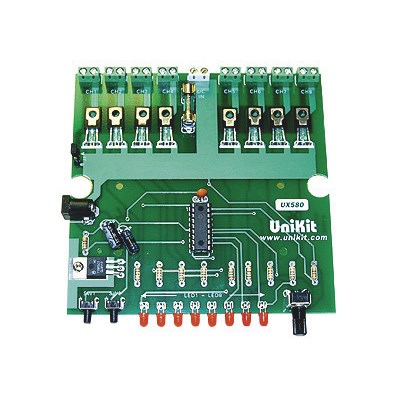

8-Channel / 20-Program DC Light Chaser / Controller

8-Channel / 20-Program DC Light Chaser / Controller

by CanaKit
Kit
CK580
$49.95
Assembled
UK580
$63.95

  • Supply voltage: 6 to 24V DC / 150 mA
  • 8 channels / 20 programs
  • PIC Microcontroller
  • Speed adjustment control
  • Direction switch
  • PC board mounted fuse
  • Maximum current per channel: 1A Max.
  • Dimensions: 4.80" x 4.79"


Product Description
A professional multi-function 8-channel light controller offering 20 built-in programs including various running light patterns as well as many different light effects. The controller also offers an automatic program in which all 20 light effects follow each other repeatedly.

The controller can handle DC lights of between 6 to 24V DC on the output and up to a maximum of 1A per channel. This allows for connection to groups of hundreds of LEDs as well as high power LEDs and LED light strips.

The circuit incorporates a speed adjustment control as well as a push button switch that allows reversing the running direction of the current light pattern.

It has many applications such as traditional running light effects, Christmas lights, traffic safety arrow light boards, etc.

A custom case with silk screened panels is available under CanaKit part # BX580.
c
An AC version is also available for AC lighting applications under CanaKit part # CK570 / UK570.
