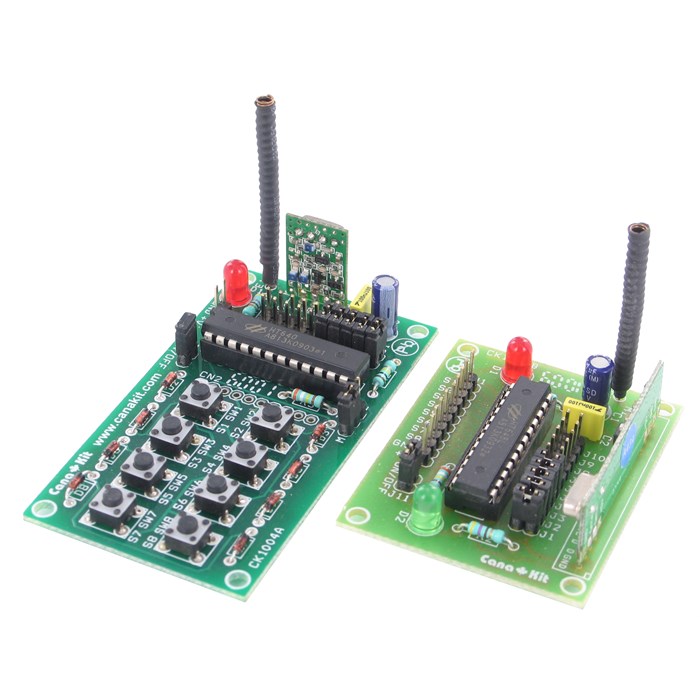

8 Channel RF Remote Control

CanaKit

Features

<LI>Supply - Transmitter : 5 V @ 150 mA & Receive : 5 V @ 25 mA

<LI>Output - 2 Latched, 6 Momentary TTL compatible output

<LI>Crystal based oscillator for reliability of operation

<LI>Jumper selectable custom codes to operate more than one unit in the same area

<LI>LED output to indicate transmission status

<LI>High noise immunity

<LI>Terminal pins for easy connecting power supply

<LI>Berg connector for interfacing of receiver board

<LI>Four mounting holes of 3.2 mm each

<LI>PCB dimensions - Transmitter : 35 mm x 74 mm & Receiver : 47 mm x 37 mm
