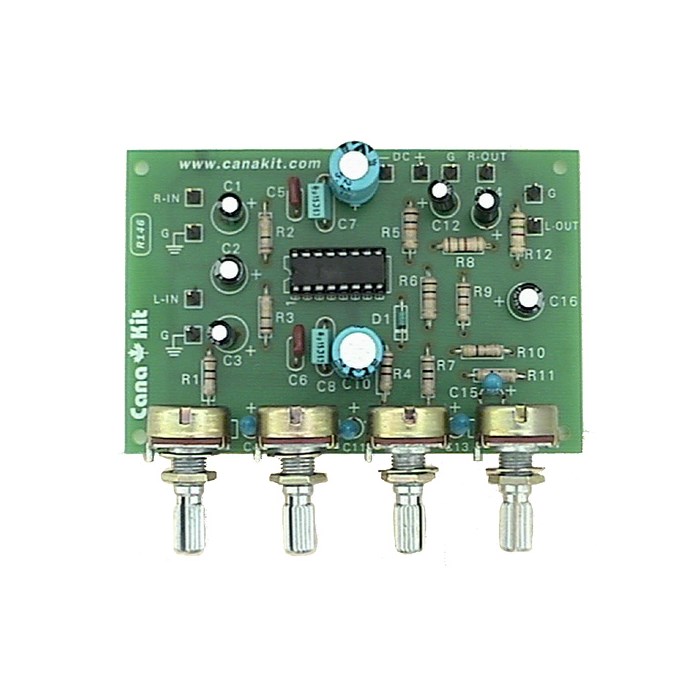

Advanced Stereo Tone Control

Advanced Stereo Tone Control

Email to a Friend

Be the first to review this product

Availability: In stock.

Product Name Price Qty
CK146 - Advanced Stereo Tone Control (Kit) $26.95
UK146 - Advanced Stereo Tone Control (Assembled) $32.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 10 to 14V DC / 50mA
  • Input sensitivity: 150mV / 47K Ohm
  • Output level: 750mV peak-to-peak
  • Frequency response: 10 to 100KHz 1dB
  • Controls range:
    Bass: 12dB
    Treble: 12dB
  • Channel separation: 70dB
  • PC board dimensions: 3.8" x 2.5" (97mm x 65mm)


    • This stereo tone control circuit uses an advanced integrated circuit to control bass, treble, volume, and balance by single unit potentiometers through a DC reference voltage. This eliminates all noises that are encountered on classic tone control circuits. All controls are mounted on the PC board and are included.
