Cyclic PIC Digital Timer with Relay (1 sec to 15 Hour)

More Views

Cyclic PIC Digital Timer with Relay (1 sec to 15 Hour)

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: In stock.

Product Name Price Qty
CK670CY - Cyclic PIC Digital Timer with Relay (1 sec to 15 Hour) (Kit) $29.95
UK670CY - Cyclic PIC Digital Timer with Relay (1 sec to 15 Hour) (Assembled) $39.95
Add Items to Cart Add to Cart

Quick Overview

.

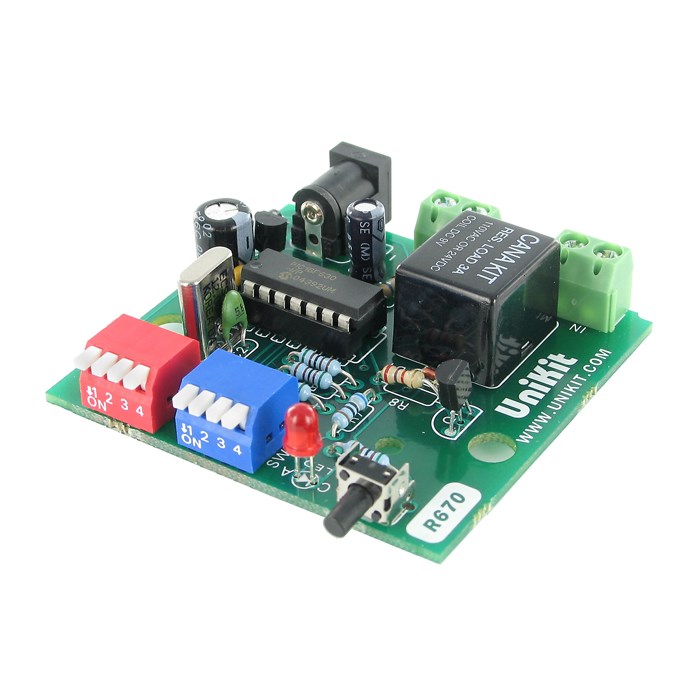

This PIC Digital Timer is precision Cyclic (repeating ON-OFF-ON-OFF) timer based on a custom programmed Microchip PIC16F630 PIC Microcontroller which ensures a high degree of accuracy and flexibility. The timer allows both the ON and OFF periods to be set independently to a precise value through a set of DIP switches.

Each DIP switch can be set to a binary value of 1 through 15 and can be configured to be in Seconds, Minutes, or Hours. As an example, the ON period can be set to Seconds, and the OFF period can be set to Hours. The ON DIP switch can then be set to a value of 10, and the OFF DIP switch to a value of 2, resulting in the timer being activated for 10 seconds, every 2 hours indefinitely.

The timer incorporates a 3A (110V AC or 24V DC) relay as well as a DC adapter jack and screw-on terminal blocks for easy wiring of the relay contacts.

An optional professional custom case with silk-screened panels is also available for this timer (Part # ACC-670CY).

* If the timing or functionality of this timer does not meet your requirements exactly, please contact us for custom programming. We can program the unit for almost any application per your request for a one-time programming charge starting at $50.
