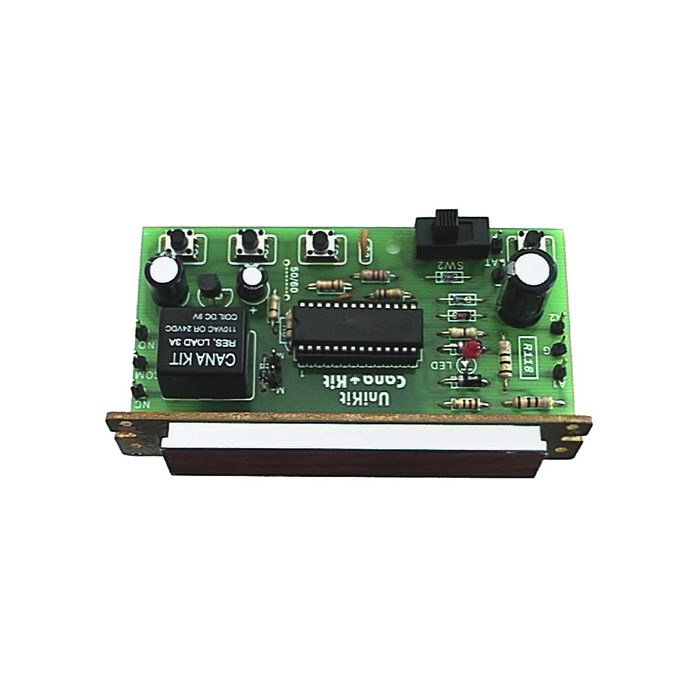

Digital Clock with Timer & Relay Output

Digital Clock with Timer & Relay Output

Email to a Friend

Be the first to review this product

Availability: In stock.

Product Name Price Qty
CK118 - Digital Clock with Timer & Relay Output (Kit) $27.95
UK118 - Digital Clock with Timer & Relay Output (Assembled) $35.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 12V AC C.T. (2 x 6V AC) / 300mA transformer

  • Output relay handles up to 3A / 110V AC or 24V DC (1.5A / 220V AC)

  • Display height: 15.2mm

  • 50/60 Hz operation

  • Snooze function

  • PC board dimensions: 3.6" x 1.9" (93mm x 49mm)


    • This circuit is a digital clock with a built-in 24-hour timer. It includes a one-piece LED display which provides a 4-digit display of hours and minutes, AM/PM and timer-on indicators. The timer includes a relay output which be connected to any external electrical device of up to 3A / 110V AC or 24V DC (1.5A / 220V AC).
