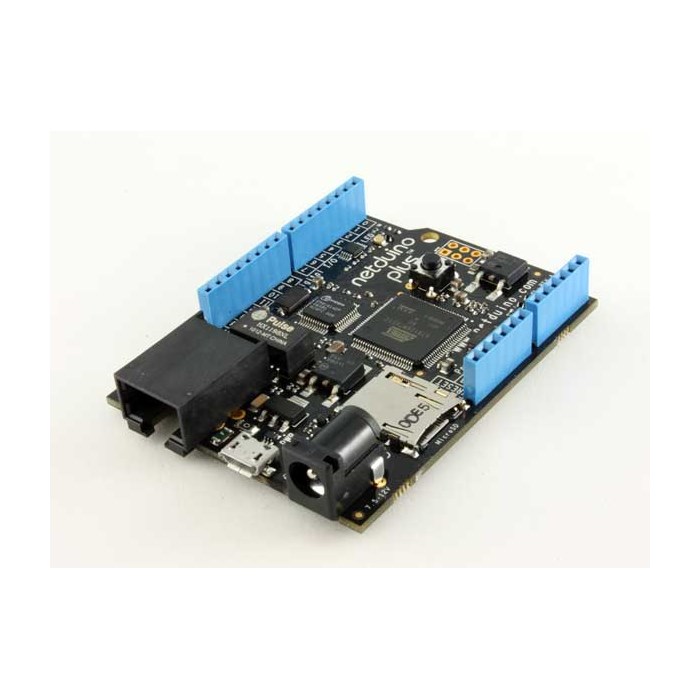

Netduino Plus - With Ethernet and microSD

Product Description

Netduino is a new open source electronics platform based on the Microsoft .NET Micro Framework.

The Netduino Plus is a powerful Netduino coupled together with built-in Ethernet as well as microSD support on the same board!

It features a very powerful 32-bit microcontroller integrated with a rich standard development environment which is freely available through Microsoft (Visual Studio 2010).

The platform allows for easy interfacing with switches, sensors, LEDs, serial devices, and more. The Netduino combines 20 GPIOs with SPI, I2C, 2 UARTs (1 RTS/CTS), 4 PWM and 6 ADC channels.

The Microsoft .NET Micro Framework combines the ease of a high-level programming language (C#) with the features of microcontrollers.

Enjoy event-based programming, multi-threading, line-by-line debugging, breakpoints and more!

3rd-party accessories offer pre-built functionality like GPS location, servo control and battery power.

Netduino is also pin compatible with Arduino shields. Drivers are required for some Arduino shields.

See the Netduino Getting Started Guide for more information on how to get started with the Netduino.


Digital i/o features

● all 20 digital and analog pins: GPIO
● digital pins 0-1: UART 1 RX, TX
● digital pins 2-3: UART 2 RX, TX
● digital pins 5-6: PWM, PWM
● digital pins 7-8: UART 2 RTS, CTS
● digital pins 9-10: PWM, PWM
● digital pins 11-13: SPI MOSI, MISO, SPCK
● analog pins 4-5: I2C SDA, SCL

Networking

● ethernet: 100 mbps
● network stack: lwIP

Storage

● micro sd (up to 2 GB)
● auto card detect
