Square Wave Geneator

More Views

Square Wave Geneator

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: In stock.

Product Name Price Qty
CK030 - Square Wave Geneator (Kit) $8.95
UK030 - Square Wave Geneator (Assembled) $11.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply Voltage: 9V DC / 50mA

  • Output Amplitude: 8V peak-to-peak

  • Output Frequency: 50 - 60 Hz or 200Hz - 50KHz

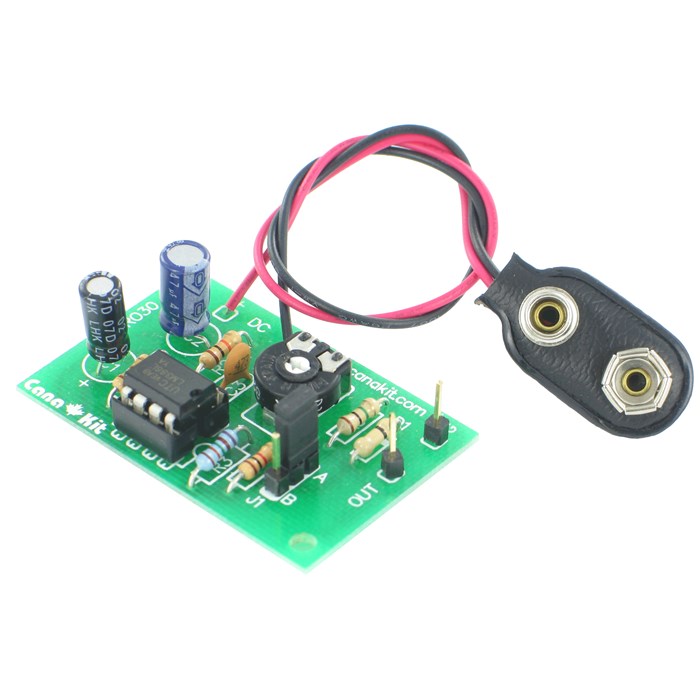

    • This simple and easy to build square wave generator is designed around an LM386 Integrated Circuit. It provides two output frequencies ranges: 50 - 60 Hz or 200Hz - 50KHz. The frequency is adjustable through a variable resistor incorporated on the board.
