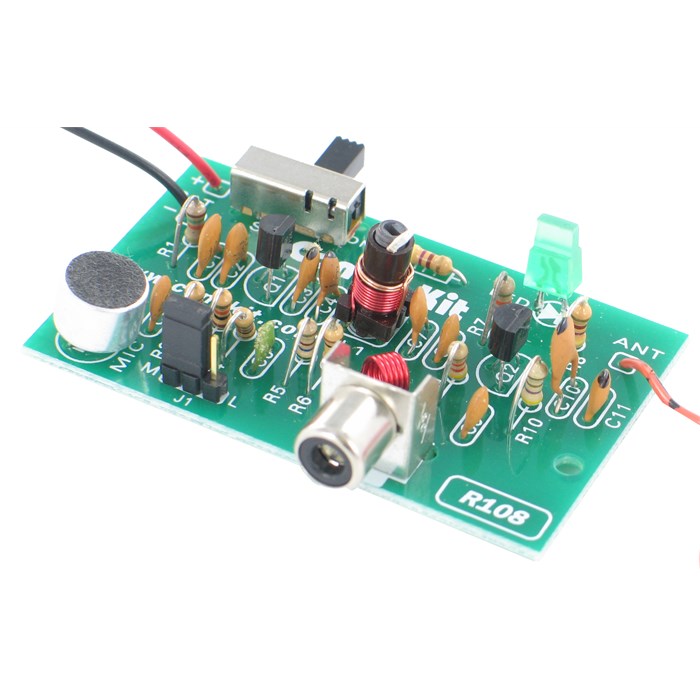

Universal FM Transmitter with Mic and Line Inputs

More Views

Universal FM Transmitter with Mic and Line Inputs

Email to a Friend

Be the first to review this product

Availability: In stock.

Product Name Price Qty
CK108 - Universal FM Transmitter with Mic and Line Inputs (Kit) $16.95
UK108 - Universal FM Transmitter with Mic and Line Inputs (Assembled) $21.95
Add Items to Cart Add to Cart

Quick Overview

  • Supply voltage: 6V DC (4 x AA size batteries)

  • Frequency: adjustable from 88 to 108 MHz

  • Two modes of operation:

  • Microphone (built-in)

  • Line Input

  • Transmission range: approximately 150m (unobstructed)

  • Includes battery holder and PC board mounted RCA jack

  • PC board dimensions: 2.5" x 1.5" (64mm x 37mm)


    • This is a unique FM transmitter that provides both a built-in sensitive microphone and an RCA jack for line input. It has two modes of operations, "Microphone" and "Line", which are selectable using a jumper. In the "Microphone" mode, it can be used as a wireless microphone transmitter. In the "Line" mode, it can be easily connected to any audio source to broadcast the audio signal to any FM receiver withing its range.
