Mini USB PIC Programmer

More Views

Mini USB PIC Programmer

Email to a Friend

Be the first to review this product

Bookmark and Share

Availability: In stock.

Product Name Price Qty
UK1301 - Mini USB PIC Programmer (Assembled) $49.95
CK1301 - Mini USB PIC Programmer (Kit) $34.95
Add Items to Cart Add to Cart

Quick Overview

• USB Connection (Cable NOT Included)
• Does not require a power supply
• 100% compatible with Microchip's MPLAB IDE
• Standalone Windows Programming Software available for download.
• 20-pin ZIF socket for easy programming and removal
• Supports a wide range of PIC Microcontrollers from 8-Pin to 20-Pin
• ICSP connector for programming of any PIC (8-pin to 40-pin)
• Power and programming LED's

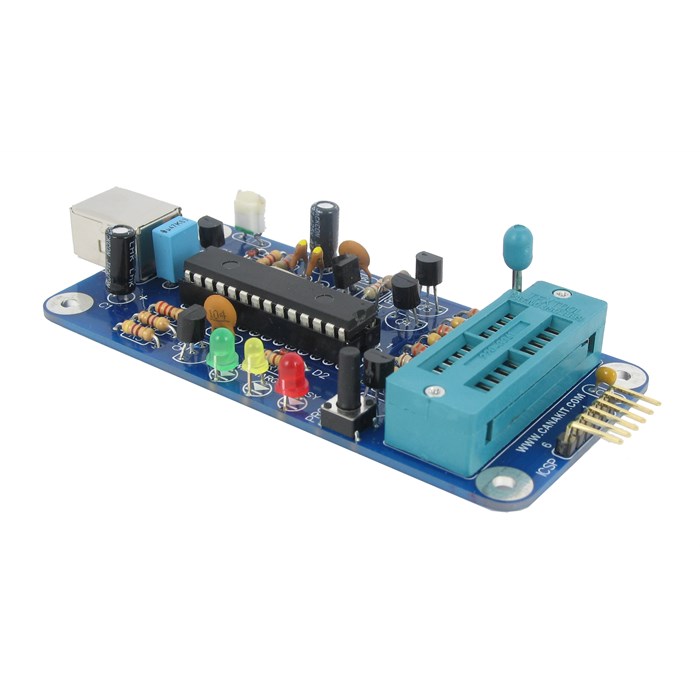

Mini USB PIC Programmer



A professional, yet very compact USB PIC Programmer offering a 20-pin ZIF (Zero Insertion Force) socket for easy PIC programming.

This PIC Programmer uses a USB port for connection to the computer as opposed to the traditional Serial port, therefore eliminating the need for a separate power supply as power is taken directly from the USB port.

The PIC Programmer offers In-circuit programming through a standard 6-pin ICSP connector as well as a built-in 20-pin ZIF socket for easy programming of any PIC of up to 20-pins right on the programmer. Higher pin count PICs can also be programmed, but through the ICSP connection header.

The PIC Programmer is 100% compatible with Microchip's MPLAB IDE and threfore can program all popular PIC 5V Microcontrollers including the PIC16F84A, PIC16F628, PIC18F458 and PIC16F877.

Standalone windows programming software fully supported by Microchip is available for download.

The firmware of this USB PIC Programmer is also fully updatable as new devices are released and updates to the firmware can be easily downloaded via Microchip's official website.

Instruction Manual:

  • CK1301
  • UK1301

    Currently Supported Devices:

    Important Note: Only 5V Operating Voltage versions of PICs listed below are supported with the UK1301. If you require support for PICs with Operating Voltage of less than 5V, please use UK1300.

    Baseline Devices

    PIC10F200, 202, 204, 206
    PIC10F220, 222
    PIC12F508, 509, 510, 519
    PIC16F505, 506, 526
    PIC16F54, 57, 59


    Midrange Devices

    PIC12F609, HV609
    PIC12F615, HV615
    PIC12F629, 635, 675, 683
    PIC16F610, HV610
    PIC16F616, HV616
    PIC16F627, 628
    PIC16F627A, 628A, 648A
    PIC16F630, 631, 636, 639, 676
    PIC16F677, 684, 685, 687
    PIC16F688, 689, 690
    PIC16F72
    PIC16F73, 74, 76, 77
    PIC16F722
    PIC16F723, 724, 726, 727
    PIC16F716
    PIC16F737, 747, 767, 777
    PIC16F785, HV785
    PIC16F84A, 87, 88
    PIC16F818, 819
    PIC16F870, 871, 872
    PIC16F873, 874, 876, 877
    PIC16F873A, 874A, 876A, 877A
    PIC16F882, 883, 884, 886, 887
    PIC16F913, 914, 916, 917
    PIC16F946
    PIC16F1933, 1934, 1936, 1937
    PIC16F1938, 1939
    PIC16LF1933, 1934, 1936, 1937
    PIC16LF1938, LF1939


    PIC18F Devices

    PIC18F242, 252, 442, 452
    PIC18F248, 258, 448, 458
    PIC18F1220, 1320, 2220, 2320
    PIC18F1230, 1330
    PIC18F2221, 2321
    PIC18F2331, 2410, 2420, 2431
    PIC18F2423
    PIC18F2450, 2455, 2458, 2480
    PIC18F2510, 2515, 2520, 2523
    PIC18F2525
    PIC18F2550, 2553, 2580, 2585
    PIC18F2610, 2620, 2680
    PIC18F2682, 2685
    PIC18F4220, 4221
    PIC18F4320, 4321, 4331
    PIC18F4410, 4420, 4423
    PIC18F4431, 4450, 4455
    PIC18F4458, 4480
    PIC18F4510, 4515, 4520, 4523
    PIC18F4525, 4550, 4553, 4580
    PIC18F4585
    PIC18F4610, 4620, 4680
    PIC18F4682, 4685
    PIC18F6310, 6390, 6393
    PIC18F6410, 6490, 6493
    PIC18F6520, 6525, 6527, 6585
    PIC18F6620, 6621, 6622, 6627
    PIC18F6628, 6680
    PIC18F6720, 6722, 6723
    PIC18F8310, 8390, 8393
    PIC18F8410, 8490, 8493
    PIC18F8520, 8525, 8527, 8585
    PIC18F8621, 8620, 8622, 8627
    PIC18F8628, 8680
    PIC18F8720, 8722, 8723
    -
    PIC18F24J10, F25J10, F44J10, F45J10
    PIC18LF24J10, LF25J10, LF44J10, LF45J10
    PIC18F24J11, F25J11, F44J11, F45J11
    PIC18LF24J11, LF25J11, LF44J11, LF45J11
    PIC18F26J11, F46J11
    PIC18LF26J11, LF46J11
    PIC18F24J50, F25J50, F44J50, F45J50
    PIC18LF24J50, LF25J50, LF44J50, LF45J50
    PIC18F26J50, F46J50
    PIC18LF26J50, LF46J50
    PIC18F63J11, 63J90, 64J11, 64J90
    PIC18F65J10, 65J11, 65J15
    PIC18F65J50, 65J90
    PIC18F66J10, 66J11, 66J15, 66J16
    PIC18F66J50, 66J55, 66J60, 66J65
    PIC18F66J90
    PIC18F67J10, 67J11, 67J50, 67J60
    PIC18F67J90
    PIC18F83J11, 83J90, 84J11, 84J90
    PIC18F85J10, 85J11, 85J15, 85J50
    PIC18F85J90
    PIC18F86J10, 86J11, 86J15, 86J16
    PIC18F86J50, 86J55, 86J60, 86J65
    PIC18F86J90
    PIC18F87J10, 87J11, 87J50, 87J60
    PIC18F86J90
    PIC18F96J60, 96J65
    PIC18F97J60
    -
    PIC18F13K22, LF13K22, F14K22, LF14K22
    PIC18F13K50, 14K50
    PIC18F23K20, 24K20, 25K20, 26K20
    PIC18F43K20, 44K20, 45K20, 46K20


    PIC24 Devices

    PIC24F04KA200, 04KA201
    PIC24F08KA101, 08KA102
    PIC24F16KA101, 16KA102
    -
    PIC24FJ16GA002, 16GA004
    PIC24FJ32GA002, 32GA004
    PIC24FJ32GA102, 32GA104
    PIC24FJ32GB002, 32GB004
    PIC24FJ48GA002, 48GA004
    PIC24FJ64GA002, 64GA004
    PIC24FJ64GA102, 64GA104
    PIC24FJ64GB002, 64GB004
    PIC24FJ64GA006, 64GA008, 64GA010
    PIC24FJ64GB106, 64GB108, 64GB110
    PIC24FJ96GA006, 96GA008, 96GA010
    PIC24FJ128GA006, 128GA008, 128GA010
    PIC24FJ128GA106, 128GA108, 128GA110
    PIC24FJ128GB106, 128GB108, 128GB110
    PIC24FJ192GA106, 192GA108, 192GA110
    PIC24FJ192GB106, 192GB108, 192GB110
    PIC24FJ256GA106, 256GA108, 256GA110
    PIC24FJ256GB106, 256GB108, 256GB110
    -
    PIC24HJ12GP201, 12GP202
    PIC24HJ16GP304
    PIC24HJ32GP202, 32GP204
    PIC24HJ32GP302, 32GP304
    PIC24HJ64GP202, 64GP204
    PIC24HJ64GP206, 64GP210, 64GP506
    PIC24HJ64GP502, 64GP504, 64GP510
    PIC24HJ128GP202, 128GP204
    PIC24HJ128GP206, 128GP210, 128GP306
    PIC24HJ128GP310
    PIC24HJ128GP502, 128GP504
    PIC24HJ128GP506, 128GP510
    PIC24HJ256GP206, 256GP210, 256GP610


    dsPIC30 Devices

    dsPIC30F1010
    dsPIC30F2010, 2011, 2012
    dsPIC30F2020, 2023
    dsPIC30F 3010, 3011, 3012
    dsPIC30F3013, 3014
    dsPIC30F4011, 4012, 4013
    dsPIC30F5011, 5013, 5015, 5016
    dsPIC30F6010A, 6011A, 6012A
    dsPIC39F6013A, 6014A, 6015


    dsPIC33 Devices

    dsPIC33FJ12GP201, 12GP202
    dsPIC33FJ16GP304
    dsPIC33FJ32GP202, 32GP204
    dsPIC33FJ32GP302, 32GP304
    dsPIC33FJ64GP202, 64GP204
    dsPIC33FJ64GP206, 64GP306, 64GP310
    dsPIC33FJ64GP706, 64GP708, 64GP710
    dsPIC33FJ64GP802, 64GP804
    dsPIC33FJ128GP202, 128GP204
    dsPIC33FJ128GP206, 128GP306, 128GP310
    dsPIC33FJ128GP706, 128GP708, 128GP710
    dsPIC33FJ128GP802, 128GP804
    dsPIC33FJ256GP506, 256GP510, 256GP710
    -
    dsPIC33FJ06GS101, 06GS102, 06GS202
    dsPIC33FJ16GS402, 16GS404
    dsPIC33FJ16GS502, 16GS504
    -
    dsPIC33FJ12MC201, 12MC202
    dsPIC33FJ16MC304
    dsPIC33FJ32MC202, 32MC204
    dsPIC33FJ32MC302, 32MC304
    dsPIC33FJ64MC202, 64MC204
    dsPIC33FJ64MC506, 64MC508, 64MC510
    dsPIC33FJ64MC706, 64MC710
    dsPIC33FJ64MC802, 64MC804
    dsPIC33FJ128MC202, 128MC204
    dsPIC33FJ128MC506, 128MC510
    dsPIC33FJ128MC706, 128MC708, 128MC710
    dsPIC33FJ128MC802, 128MC804
    dsPIC33FJ256MC510, 256MC710


    PIC32 Devices

    PIC32MX320F032H, 320F064H
    PIC32MX320F128H, 320F128L
    PIC32MX340F128H, 340F128L
    PIC32MX340F256H
    PIC32MX340F512H
    PIC32MX360F256L, 360F512L
    PIC32MX420F032H
    PIC32MX440F128L, 440F128H
    PIC32MX440F256H
    PIC32MX440F512H
    PIC32MX460F256L, 460F512L


    KEELOQ® HCS Devices*

    HCS200, 201
    HCS300, 301, 320
    HCS360, 361, 362


    11 Series Serial EEPROM Devices*

    11LC/AA010
    11LC/AA020
    11LC/AA040
    11LC/AA080
    11LC/AA160


    24 Series Serial EEPROM Devices*

    24LC/AA/C00
    24LC/AA01B, 02B, 04B, 08B
    24LC/AA16B, 32A
    24LC/AA/FC64, 128, 256, 512
    24LC/AA/FC1025


    25 Series Serial EEPROM Devices*

    25LC/AA010A, 020A, 040A
    25LC/AA080A, 080B, 160A, 160B
    25LC/AA320A, 640A
    25LC/AA128, 256, 512, 1024


    93 Series Serial EEPROM Devices*

    25LC/AA/C46A, 46B, 46C
    25LC/AA/C56A, 56B, 56C
    25LC/AA/C66A, 66B, 66C
    25LC/AA/C47A, 76B, 76C
    25LC/AA/C48A, 86B, 86C


    MCP250xx CAN Devices*

    MCP25020, 25025
    MCP25050, 25055


    * These devices can only be used through the ICSP connection header and not through the ZIF socket.
