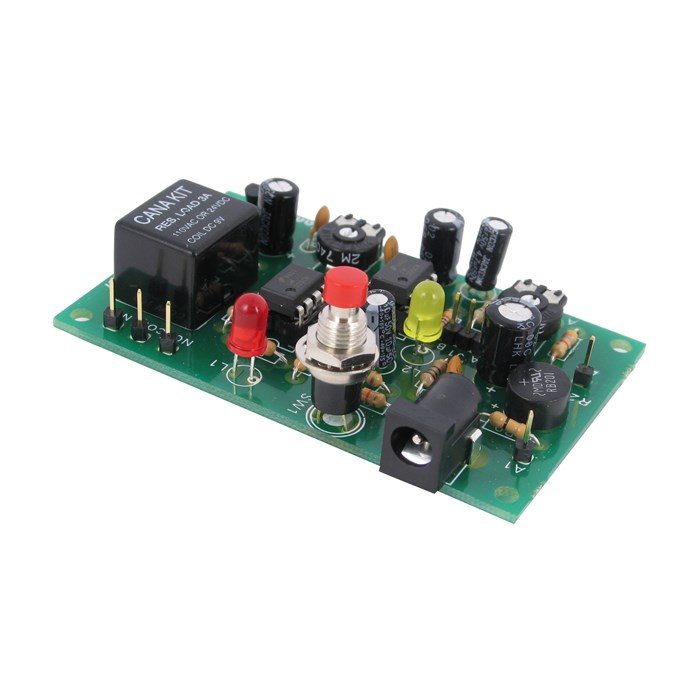

20 Minute Dual (Delaying) Adjustable Timer

20 Minute Dual (Delaying) Adjustable Timer

by CanaKit
Kit
CK249M20
$23.95
Assembled
UK249M20
$27.95

  • Supply voltage: 9V AC or 12V DC/ 100m
  • Timing adjustment: few seconds to 20 minutes


Product Description
This circuit consists of 2 timers: a delay timer and an ON period timer, each individually adjustable from a few seconds to 20 minutes. A typical application of this timer is to allow you to turn on a device after a certain preset delay time (Timer 1) and then to turn off the device after the preset ON period (Timer 2).
