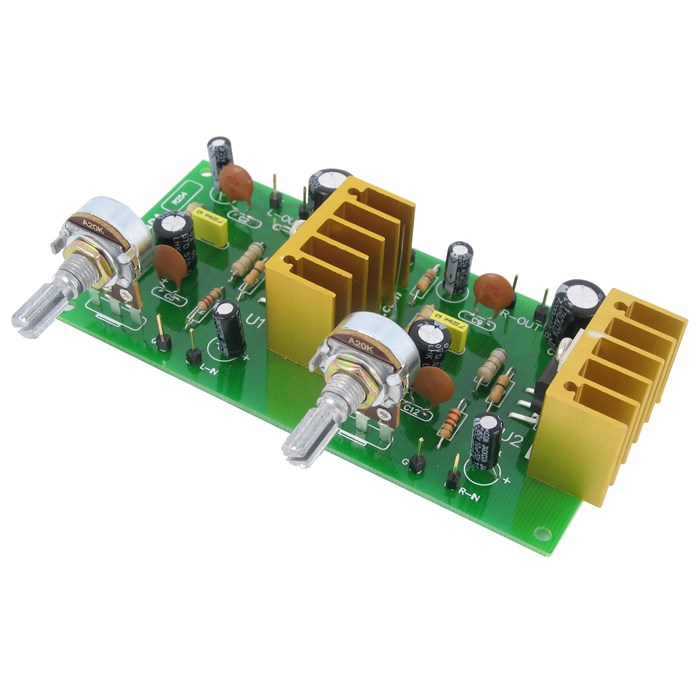

20W Stereo Audio Amplifier

20W Stereo Audio Amplifier

by CanaKit
Kit
CK254
$27.95
Assembled
UK254
$35.95

  • Supply voltage: 12 to 18V DC / 1 to 2A
  • Based on two TDA2003 Integrated Circuits
  • Output power: 2 x 10W Max. @ 4 Ohm
  • Output impedance: 4 or 8 Ohm
  • Maximum distortion: < 0.5%
  • Frequency response: 40 Hz to 15 KHz (-3dB)
  • Input sensitivity: 100mV / 20K Ohm
  • Includes volume controls
  • Includes two heat sinks for the ICs
  • Dimensions: 4.33" x 2.18"


Product Description
This circuit is a stereo amplifier that will convert your MP3 or portable player into a stereo system with enough power to fill a large room with stereo sound. The amplifier is based on two TDA2003 Integrated Circuits and features temperature compensation and overload protection. Two heat sinks are also included as are two independent volume controls.
