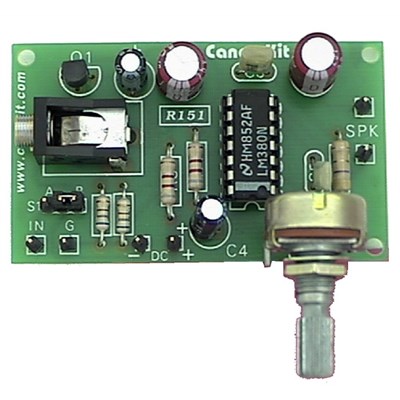

4W Amplifier with Microphone Pre Amp

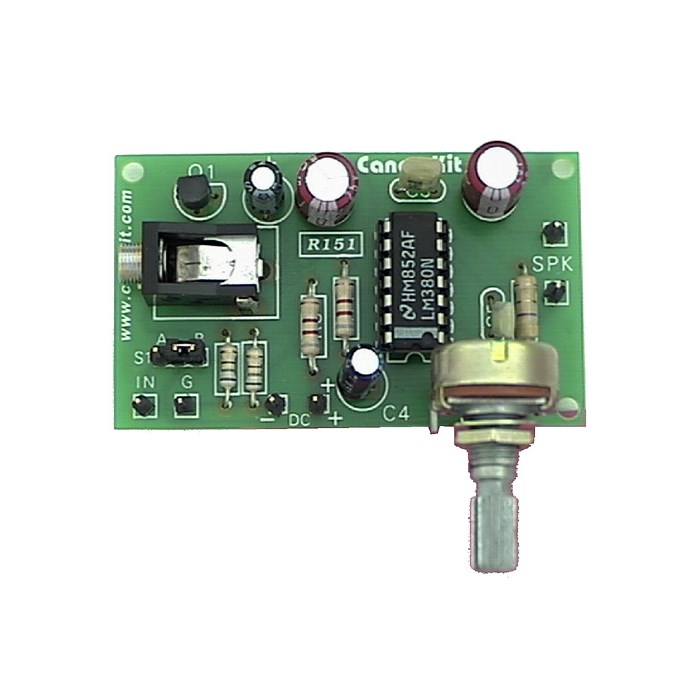

4W Amplifier with Microphone Pre Amp

by CanaKit

  • Supply voltage: 9 to 14V DC / 300 mA
  • Power consumption: < 10mA (stand-by mode)
  • Input sensitivity:
  • Aux 150mV to 1V
  • Mic 2 to 5mV (dynamic)
  • Output power: 5W Max.
  • Output impedance: 4 or 8 Ohm.
  • PC board dimensions: 2.57" x 1.52"


Product Description
This simple amplifier is built around the LM384 Integrated Circuit. Includes a pre-amplifier circuit for a dynamic microphone that can be connected to the PCB mounted jack. It can deliver up to 5W of power into an 8-Ohm speaker.
