Development Board STR712 ARM (Sale)

Product Description

Replacement: None. We do not have a direct replacement for this board. This page is for reference only.

Description: Development Board for the STR712 ARM7.

Features:

•
  MCU: STR712FR2T6 16/32 bit ARM7TDMI™ with 256K Bytes Program Flash, 64K Bytes RAM, CAN, RTC, 12 bit ADC, 4x UARTs, 2x I2C,2x SPI, 5x 32bit TIMERS, 2x PWM, 2x CCR, WDT, up to 50MHz operation


•
  Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG


•
  CAN connector


•
  RS232 interface and driver


•
  Buttons


•
  Status LED


•
  UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc. modules


•
  On board voltage regulator 3.3V with up to 800mA current


•
  Single power supply: 6V AC or DC required


•
  Power supply LED


•
  Power supply filtering capacitor


•
  Reset circuit


•
  Reset button


•
  4MHz crystal oscillator


•
  32.768kHz crystal and RTC backup battery connector


•
  Extension headers for all uC ports


•
  PCB: FR-4, 1.5 mm (0.062"), soldermask, silkscreen component print

Dimensions: 100 x 90 mm (3.93 x 3.54")



Documents:

•
  STR-P712.pdf


•

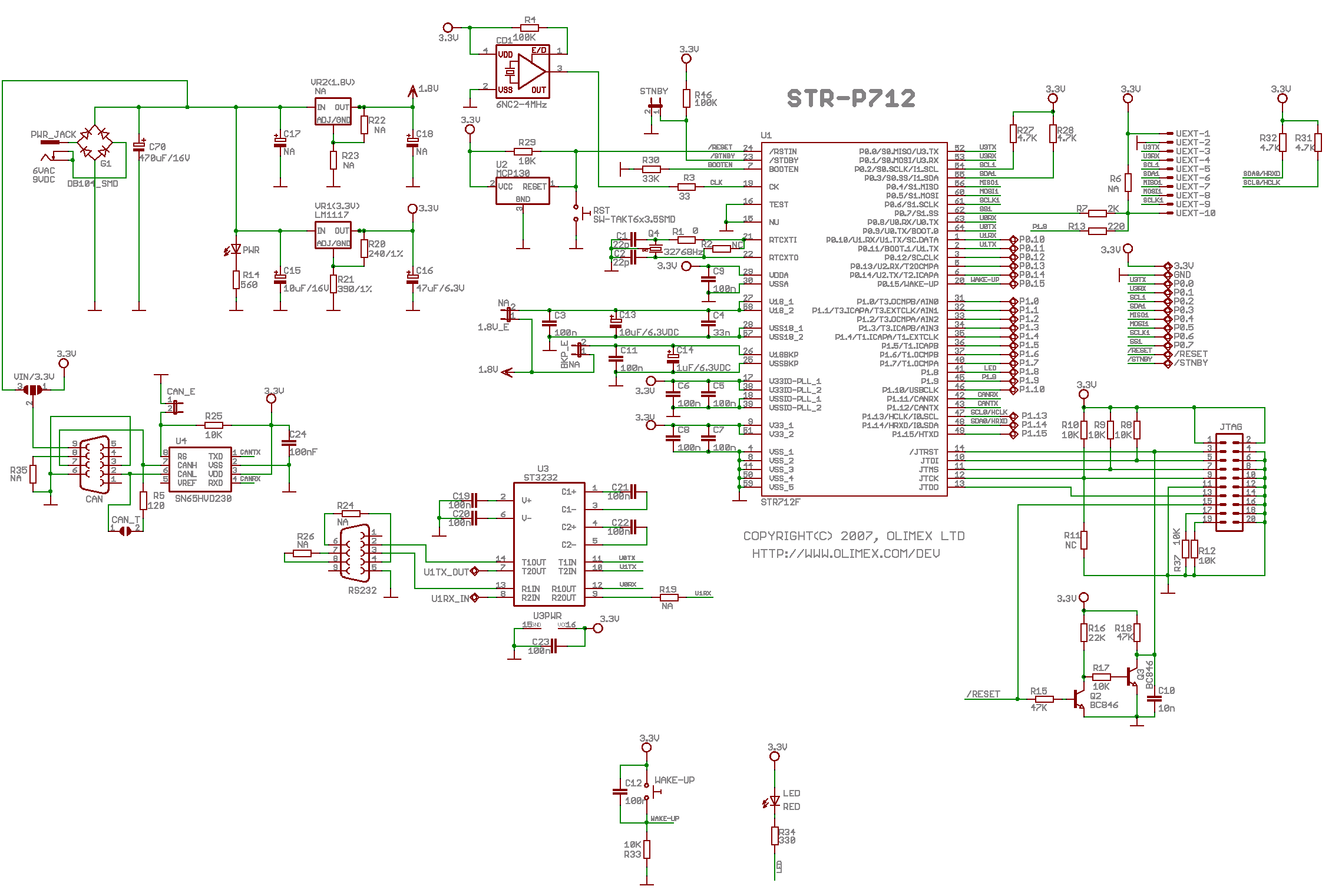

  STR-P712 Schematic
