Development Board TI TMS470R1A256 ARM

Product Description

Replacement: None. There is no direct replacement for this board. This page is for reference only.

Description: Prototyping board for the TMS470A256 processor.

•
  TMS470A256 16/32-Bit ARM7TDMI microcontroller 256KB Flash, 12KB SRAM, CAN, 2x SPI, 2x UART, C2SIb, HET, 10bit MibADC 1.55uS, WDT, up to 48 MHz operation


•
  Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG


•
  CAN connector and driver


•
  RS232 interface and drivers


•
  SD/MMC card connector


•
  LCD 16x2 with backlight


•
  Three buttons


•
  Trimpot connected to ADC


•
  Thermistor connected to ADC


•
  Buzzer


•
  UEXT - 10 pin extension connector for Olimex addon peripherals like MP3, RF2.4Ghz, RFID etc. modules


•
  On board voltage regulator and reset monitor


•
  Single power supply: 6V AC or DC required


•
  Power supply LED


•
  Power supply filtering capacitor


•
  RESET button


•
  12 MHz socketed crystal on socket


•
  ANALOG extension port connector


•
  DIGITAL extension port connector for all uC ports


•
  PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print

Dimensions: 145 x 99 mm (5.7 x 3.9 ")

Documents:

•
  TMS470-P256.pdf


•
  TMS470-P256.chm


•

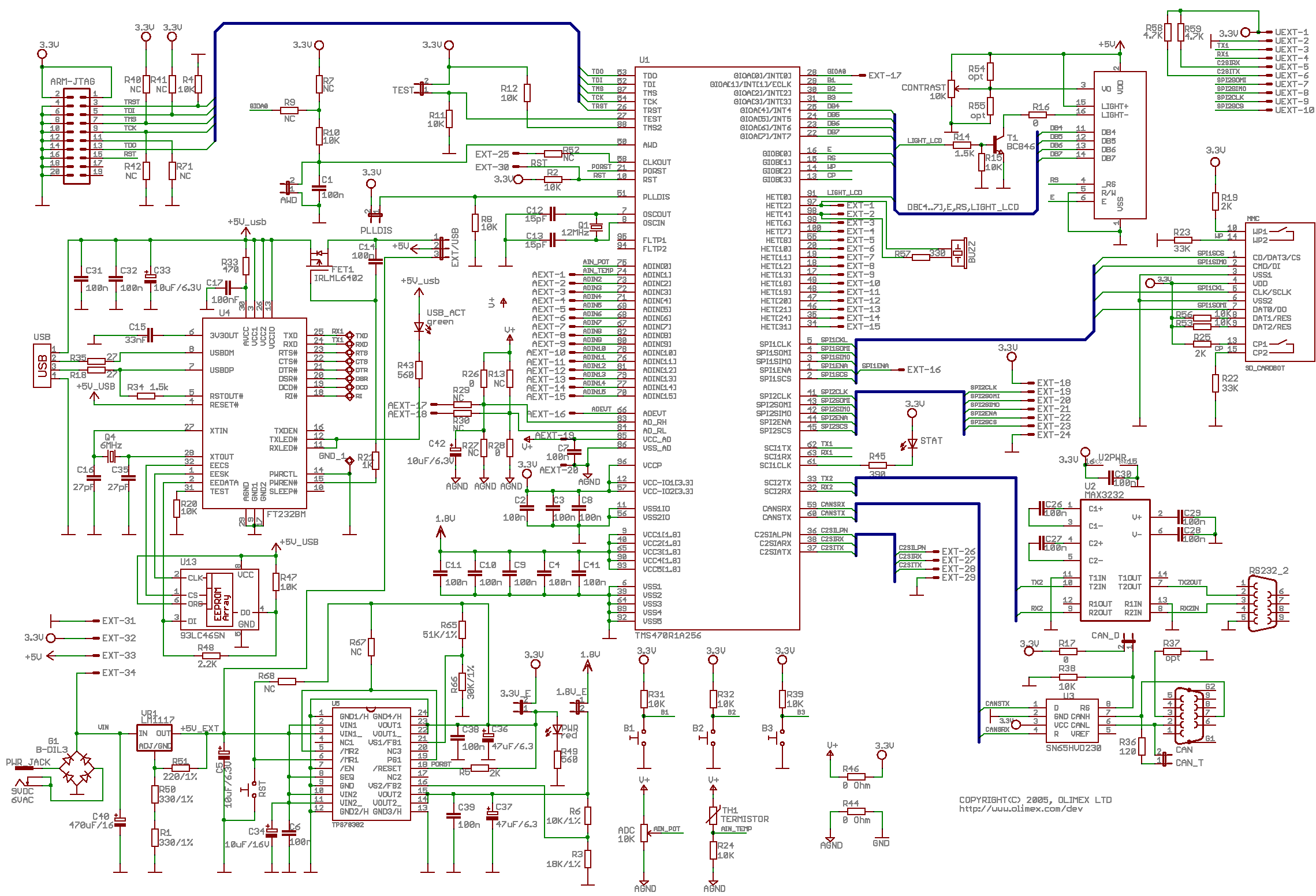

  Schematic

Software:

•
  Demo code with Buttons, Led, Buzzer


•
  RS232 initialization


•
  ADC initialization


•
  SD/MMC read/write code


•
  LCD code
