Electronic Thermostat

Electronic Thermostat

by CanaKit
Kit
CK112
$24.95
Assembled
UK112
$29.95

  • Supply voltage: 12V DC or 9V AC / 100mA
  • Relay rating: 10A / 110V AC or 24V DC (5A / 220V AC)
  • Temperature adjustment: approx. 32 to 158 °F (0 to 70 °C)
  • Hysteresis adjustment: approx. 0.9 to 3.6 °F (0.5 to 2 °C).
  • Includes PC board mounted adapter jack
  • Dimensions: 3.76" x 1.79"


Product Description

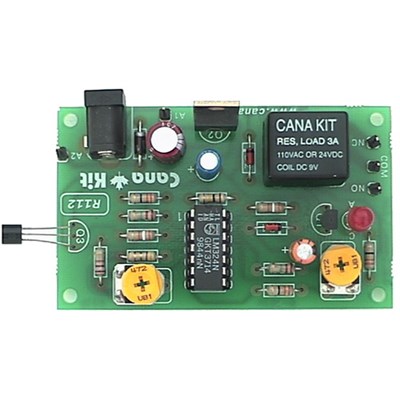

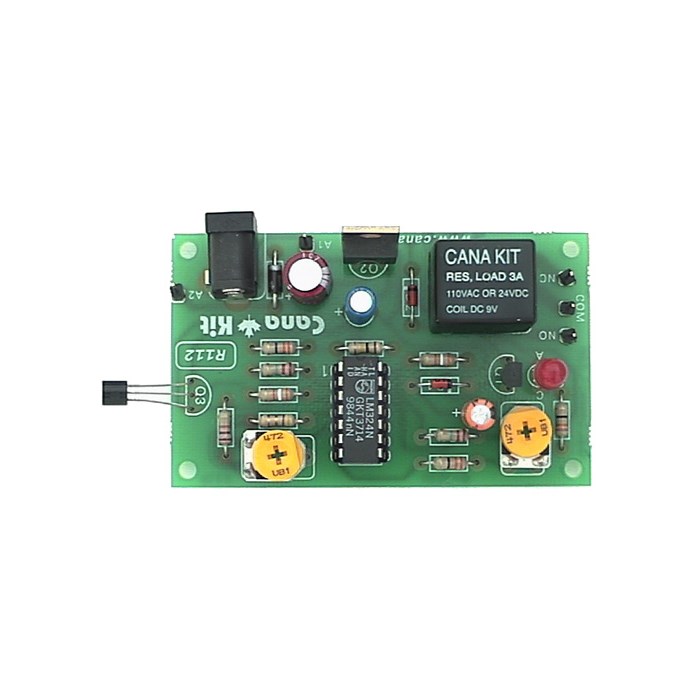

A thermostat based on a LM35 IC as the temperature sensor. Comes with a built-in relay that allows turning on or off any load under control (up to 10A). The circuit incorporates temperature and hysteresis adjustment trimmer potentiometers. Temperature adjustment can be made between approx. 32 to 158 °F (0 to 70 °C) and hysteresis between approx. 0.9 to 3.6 °F (0.5 to 2 °C).
