Ethernet Mini-Web PIC Development Board

Product Description

Description: A webserver that fits in the palm of your hand. This development board has everything you need to serve web pages with 1 megabit storage on board! Please note you will need the ICSP adapter board listed below to attach an Olimex programmer.

Features:

•
  PIC18F25J10 microcontroller


•
  ENC28J60 Ethernet controller


•
  1Mbit on board serial flash for web pages storage


•
  Mini ICSP/ICD connector for programming and debugging


•
  Reset button


•
  User event button


•
  Complete web server and TCP-IP stack support as per Microchip's open source TCP-IP stack


•
  Power plug-in jack for +5VDC power supply


•
  Voltage regulator +3.3V and filtering capacitors


•
  Status LED


•
  Extension header to connect to other boards


•
  Dimensions 55x36mm (2.16x1.42")

Documents:

•
  PIC-MINI-WEB.pdf


•
  Microchip TCP/IP AN833 - please read carefully, the TCP/IP stack is described


•
  PIC-MINI-WEB schematic


•

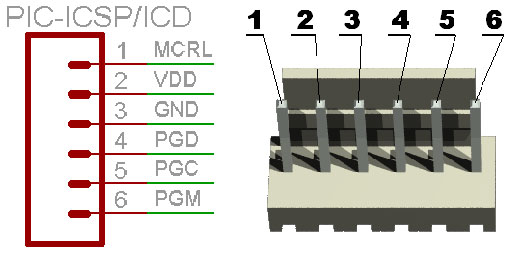

  PIC ICSP connector

Software:

•
  PIC-MINI-WEB free Microchip's TCP-IP stack tuned for PIC-MINI-WEB with DHCP disabled and IP set to 192.168.0.30, all boards are shipped with pre-loaded TCP-IP stack
