Header board for LPC2148

Product Description

Description: Small header board for the LPC2148 IC.

•
  MCU: LPC2148 16/32 bit ARM7TDMI-S with 512K Bytes Program Flash, 42K Bytes RAM, USB 2.0, RTC, 10 bit ADC 2.44 uS, 2x UARTs, 2x I2C, SPI, 2x 32bit TIMERS, 6x PWM, 8x CCR, 1x DAC, WDT, 5V tolerant I/O, up to 60MHz operation


•
  Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG


•
  Perfect solution for developing USB peripherials


•
  USB connector, USB link LED


•
  Status LED


•
  Power supply LED


•
  On board voltage regulator 3.3V with up to 800mA current


•
  Single power supply: takes power from USB or extension socket pin


•
  Power supply LED


•
  Power supply filtering capacitor


•
  RESET circuit


•
  RESET button


•
  12MHz crystal on socket


•
  32.768kHz crystal and RTC backup battery connector


•
  Extension headers for all uC ports


•
  PCB: FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print


•
  Distance between the Extension headers: 25.4 mm (1")

Dimensions: 2.54"x1.33" (64.5mmx33.8mm)

Documents:

•
  LPC-H2148 extension headers pin assignments


•
  LPC-H2148 dimensions


•
  LPC-H2148.pdf


•

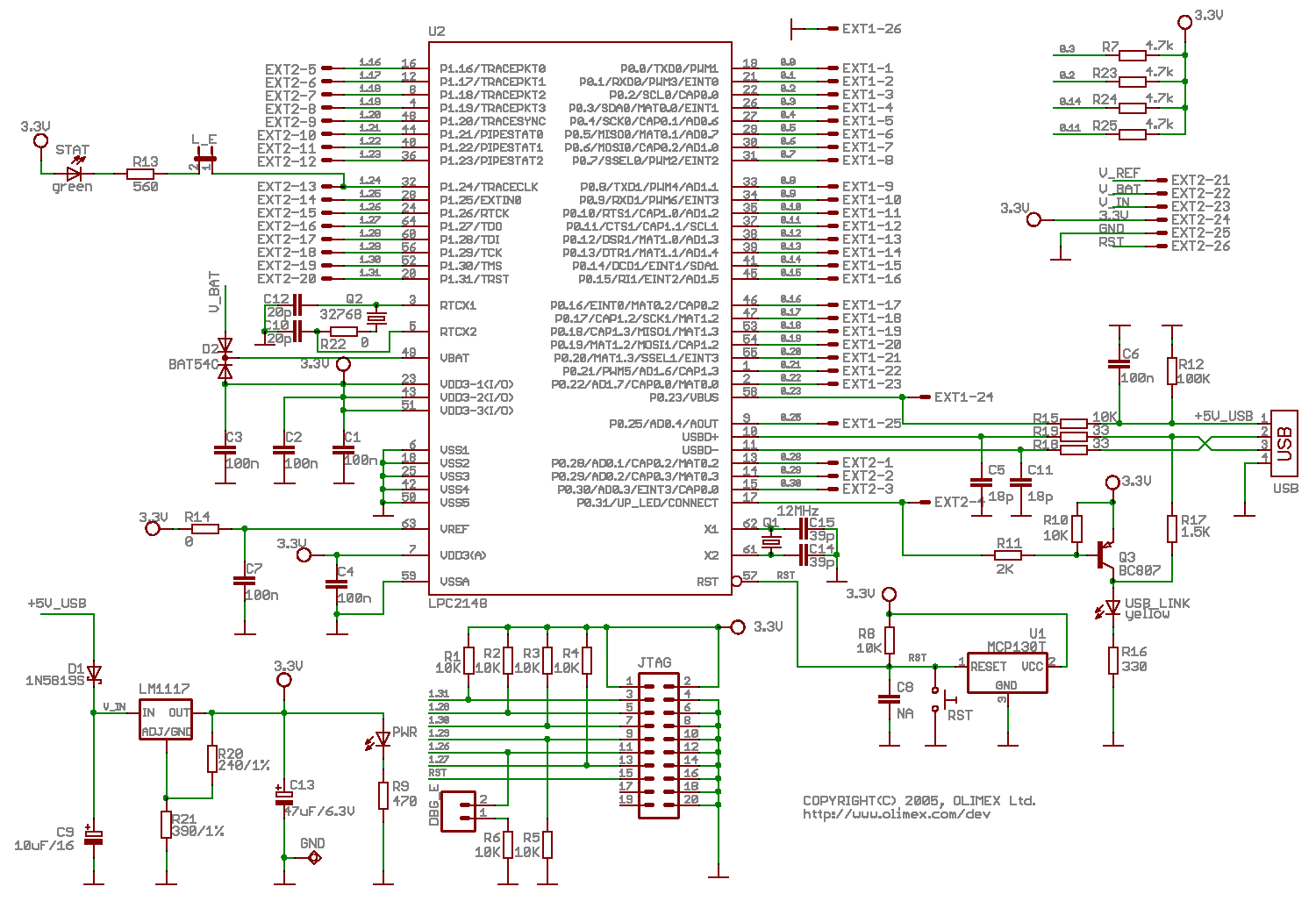

  LPC-H2148 schematic


•
  ARM-JTAG connector layout

Software:

•
  USB mouse demo
