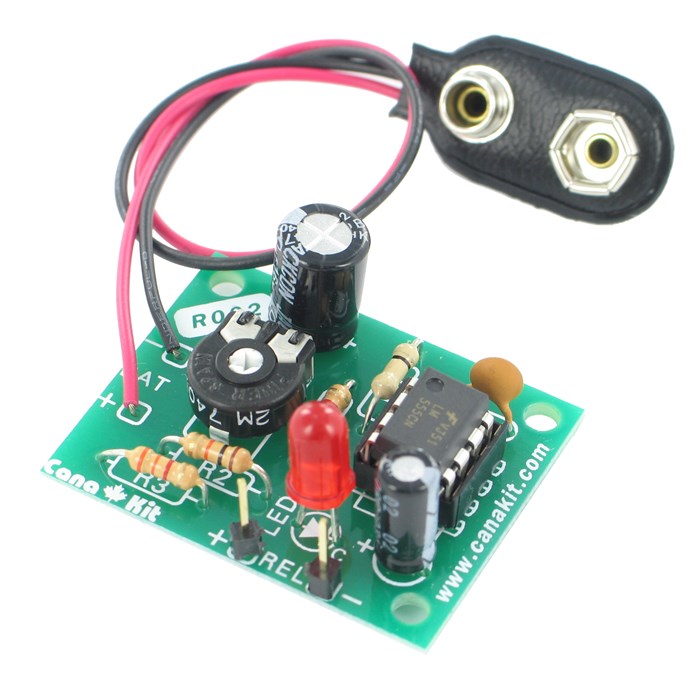

Mini Electronic Timer

Mini Electronic Timer

by CanaKit
Kit
CK002
$12.95
Assembled
UK002
$15.95

  • Supply voltage: 9 - 12V DC
  • Includes 9V battery snap
  • Adjustable from a few seconds to approx. 20 minutes
  • Power consumption: 1 mA (stand-by)
  • Timer output: 9 - 12V DC / 50mA source current
  • Dimensions: 1.50" x 1.20"


Product Description
A simple timer built around the popular 555 Integrated Circuit. The timer enables the output when the power is applied to the circuit and disables it after the preset time interval. You can adjust the timer from a few seconds to a maximum of about 20 minutes. The circuit provides a 9 to 12V DC / 50 mA output (depending on the supply voltage used) that can be directly connected to a 9V or 12V DC relay to switch more power.
