Prototype Board for MSP430F249

Product Description

Replacement: None. There is no direct replacement for this board. This page is for reference only.

Description: Prototype board for the MSP430F249 microcontroller with power supply circuit, crystal oscillator circuit, JTAG port, and RS232 interface.

Features:

•
  MCU: MSP430F249 with 60K Bytes Program Flash, 256 Bytes data Flash, 2K Bytes RAM


•
  JTAG connector


•
  RS232 driver + DB9 conector


•
  User button


•
  Power supply LED


•
  User status LED


•
  32,768 Hz oscillator crystal


•
  Optional high frequency crystal (socket)


•
  RESET button


•
  RST/NMI pin pull-up


•
  External power supply jack for AC or DC power supply


•
  Voltage regulator + power supply filtering capacitor


•
  Extension headers for each uC pin


•
  Prototype area with 0.1" step, Vcc + GND bus


•
  PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

Dimensions: 100x80 mm (3.9x3.15")



Documents:

•

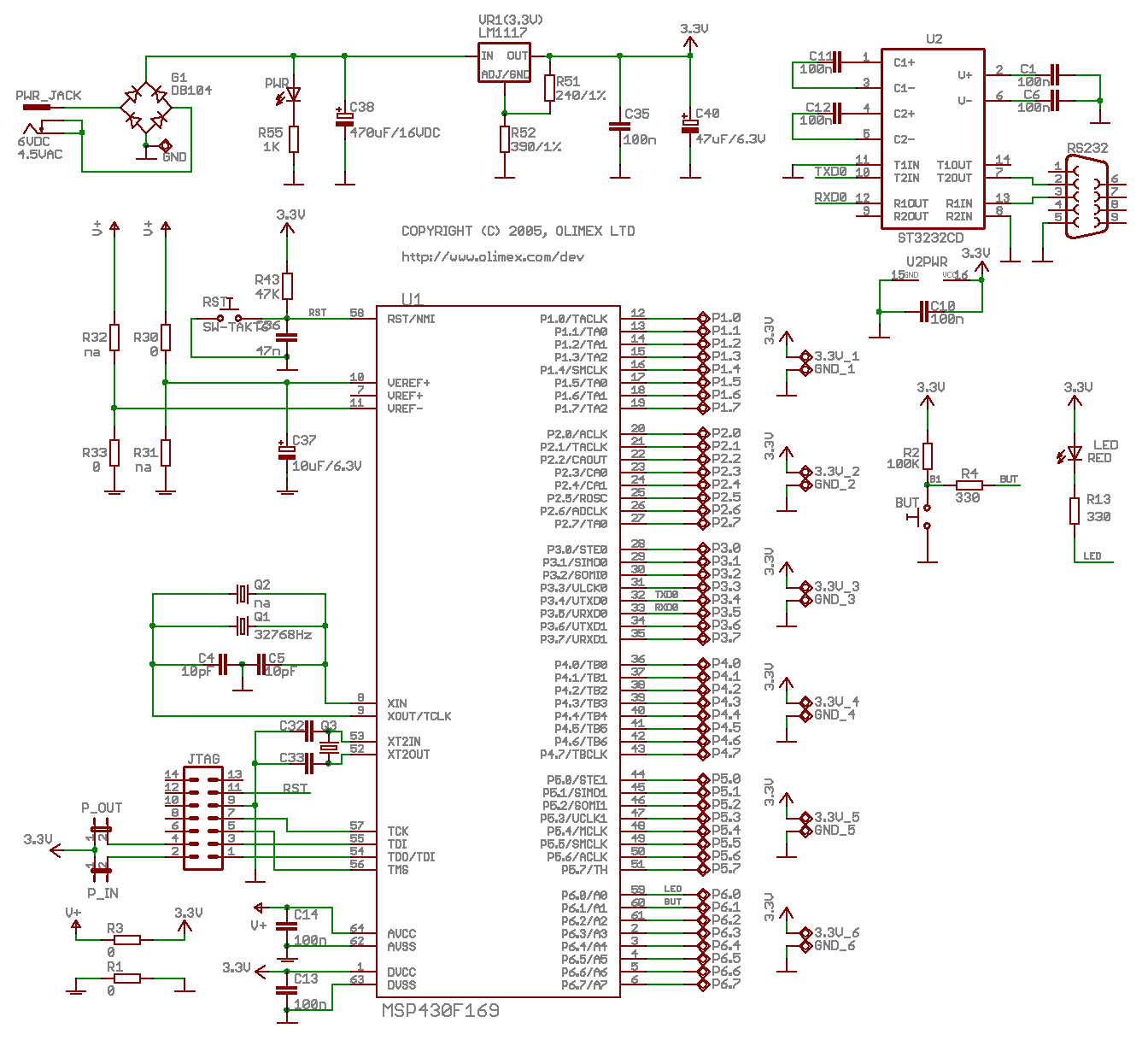

  MSP430-PXXX schematic


•
  MSP430-Pxxx-dimensions


•
  MSP430-JTAG connector (top)
