Raspberry Pi Compute Module 4 Antenna

by Raspberry Pi
Price: $5.00
  • Antenna Kit certified for use with the Raspberry pi Compute Module 4
  • Maximum Power: 10W
  • Connector: SMA (Female)
  • Antenna Dimensions: 108mm x 10mm
  • Installation: Screw

Product Description

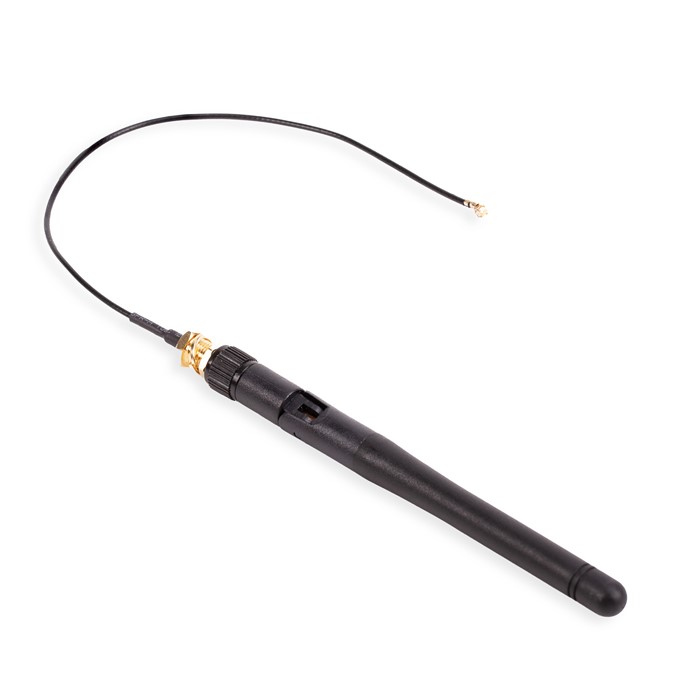

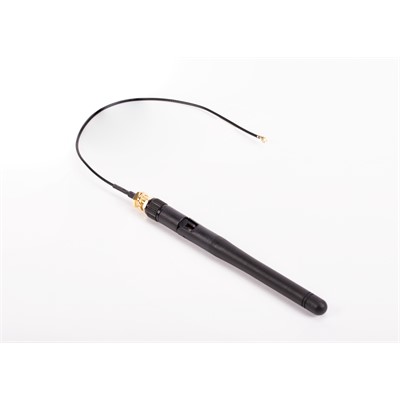

The Raspberry Pi Copmpute Module 4 Antenna Kit is certified for use with the Raspberry Pi Compute Module 4. This kit includes the official Raspberry Pi Compute Module 4 Antenna and the SMA to MHF1 cable.

Antenna Specification

  • Frequency Range: 2400-2500/5100-5800 Mhz

  • Bandwidth: 100-700Mhz

  • VSWR: 2.0 or less

  • Impedance: 50 Ohm

  • Polarization: Vertical

  • Maximum Power: 10W

  • Connector: SMA (Female)

  • Antenna Dimensions: 108mm x 10mm

  • Installation: Screw
