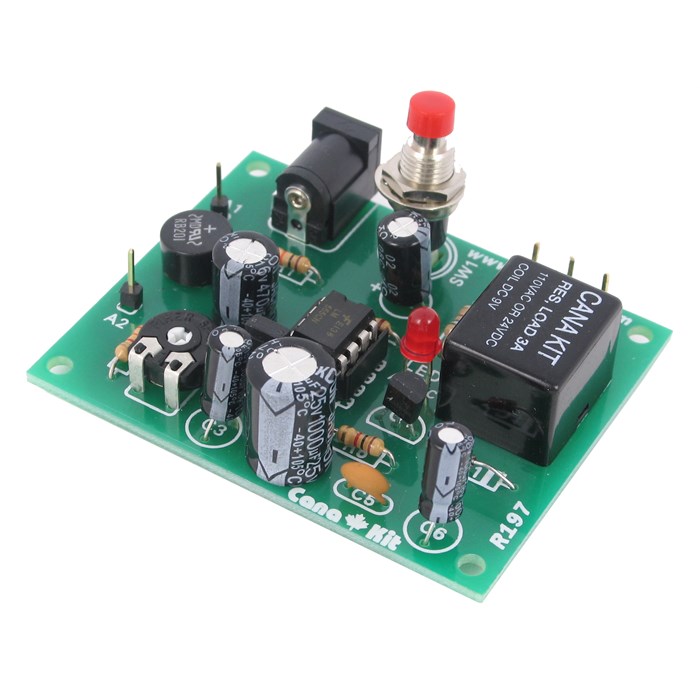

20 Minute Restart Timer with Relay

20 Minute Restart Timer with Relay

by CanaKit
Kit
CK197
$17.95
Assembled
UK197
$29.95

  • Supply voltage: 12V DC / 200 mA
  • Timing adjustment:
  • Mode 1 - Few seconds to 2 minutes
  • Mode 2 - Few seconds to 20 minutes
  • Incorporates restart push button
  • Includes adapter jack
  • Output relay: 10A / 120V AC or 24V DC (5A 240V AC)
  • Dimensions: 2.50" x 2.00"


Product Description
This restartable timer is activated when the push button is pressed. The timer will remain activated until the preset time duration. If the switch is pressed again, the timing cycle will restart again; regardless of the remaining time from the previous cycle. The circuit allows for two maximum timing durations: one from a few seconds to 2 minutes; and another from a few seconds to 20 minutes. The timer includes a relay that can handle loads of up to 10A / 110V AC or 24V DC.
