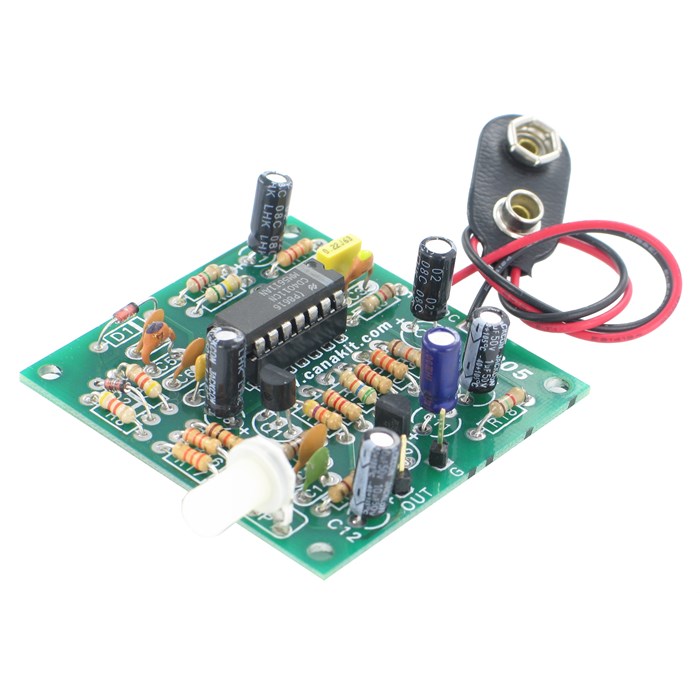

Sine Signal Generator

Sine Signal Generator

by CanaKit
Kit
CK205
$17.95
Assembled
UK205
$22.95

  • Supply voltage: 9V battery (not included)
  • Output frequency: approximately 1KHz
  • Output level: adjustable from 0 - 3V peak to peak
  • Current consumption: < 10mA


Product Description
This small circuit will produce a sine wave with a frequency of about 1KHz, ideal for testing electronic audio circuits. The circuit is based on a Wien-Bridge Oscillator which provides a sinusoidal output. It can be modified in order to produce other output frequencies such as 50 or 60 Hz by simply replacing two resistors.
