Raspberry Pi 5 8GB

Raspberry Pi
Select Memory Size
Pi 5 8GB Board Only
PI5-8GB
$80.00
PI5-8GB-STR128-C5-WHT-27W-1
$154.95
PI5-8GB-STR128-C4-BLK-27B-1
$159.95
PI5-8GB-STR128-C8-BLK-27B-1
$169.95

Features

  • 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
  • 512KB per-core L2 caches, 2MB L3 cache
  • VideoCore VII GPU
  • 4Kp60 HEVC decode
  • LPDDR4X-4267 SDRAM
  • Dual-band 802.11ac Wi-Fi

Product Description

The next evolution of the Raspberry Pi is here! Get ready to embark on a new era of innovation and endless possiblilities with the all-new Raspberry Pi 5. Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4.

Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU, dual 4Kp60 display output over HDMI, and state-of-the-art camera support from a rearchitected Raspberry Pi 5 Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.

Raspberry Pi 5
128GB Samsung MicroSD
Red/White Case
USB-C PD Power Supply
USB Card Reader
2 x Micro HDMI Cables

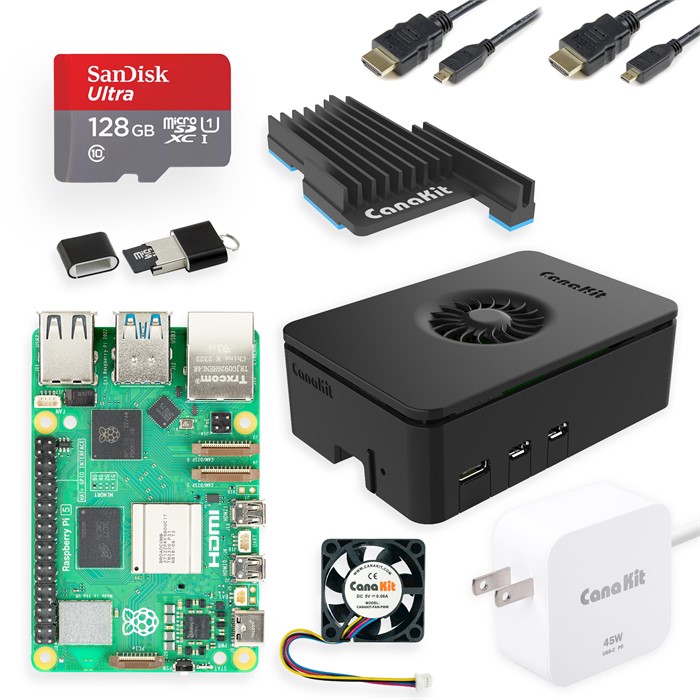

Raspberry Pi 5
128GB Samsung MicroSD
CanaKit Turbine Case
CanaKit Low-Noise PWM Fan
CanaKit Mega Heat Sink
USB-C PD Power Supply
USB Card Reader
2 x Micro HDMI Cables

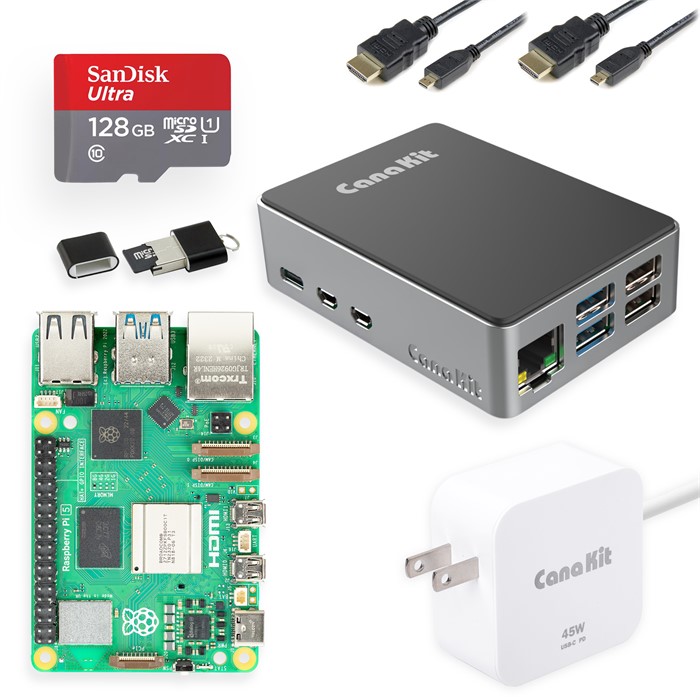

Raspberry Pi 5
128GB Samsung MicroSD
CanaKit Aluminum Case
USB-C PD Power Supply
USB Card Reader
2 x Micro HDMI Cables

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

Due to the higher power consumption the Raspberry Pi 5 is recommended to be powered by 5V / 5A PD (Power Delivery) power supply. A case with enhanced passive or active cooling is recommended.


Features:

VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
Dual 4Kp60 HDMI® display output with HDR support
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (4GB or 8GB)
Dual-band 802.11ac Wi-Fi®
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
microSD card slot, with support for high-speed SDR104 mode
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
2 × USB 2.0 ports
Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
2 × 4-lane MIPI camera/display transceivers
PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)
5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi standard 40-pin header
Real-time clock (RTC), powered from external battery (battery sold separately)
