Raspberry Pi AI Camera

CanaKit  |  SKU: RSP-CAM-AI
$70.00

Features

  • Sensor: Sony IMX500
  • Resolution: 12.3 megapixels
  • Combines image sensor with on-board inferencing acceleration for a variety of common neural network models
  • Raspberry Pi AI Camera is compatible with the Raspberry Pi 4 and Pi 5

Product Description

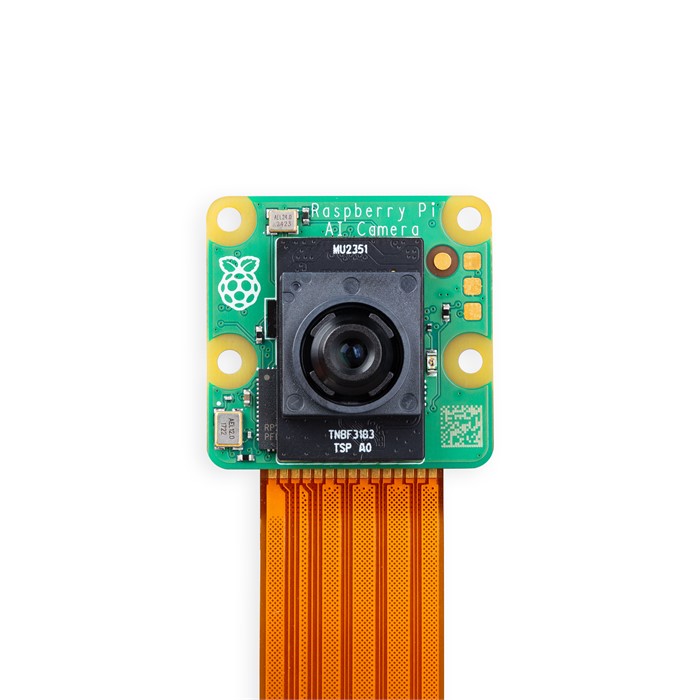

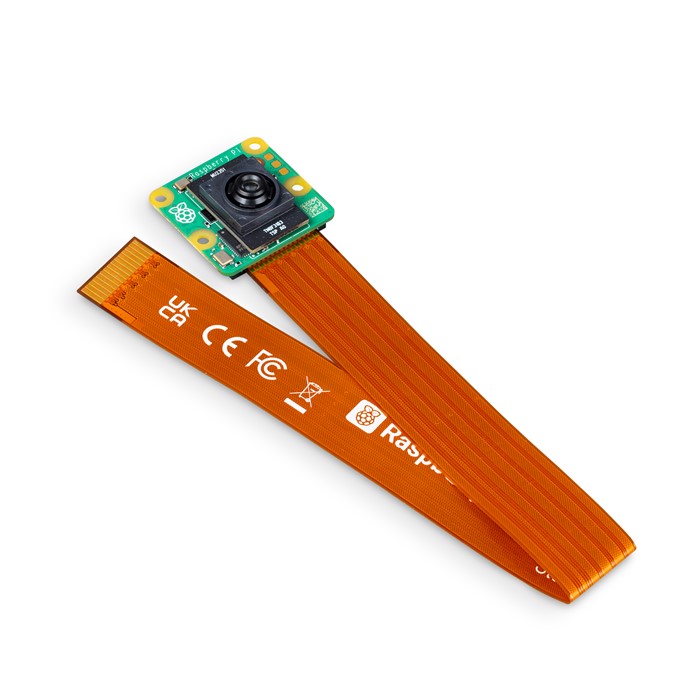

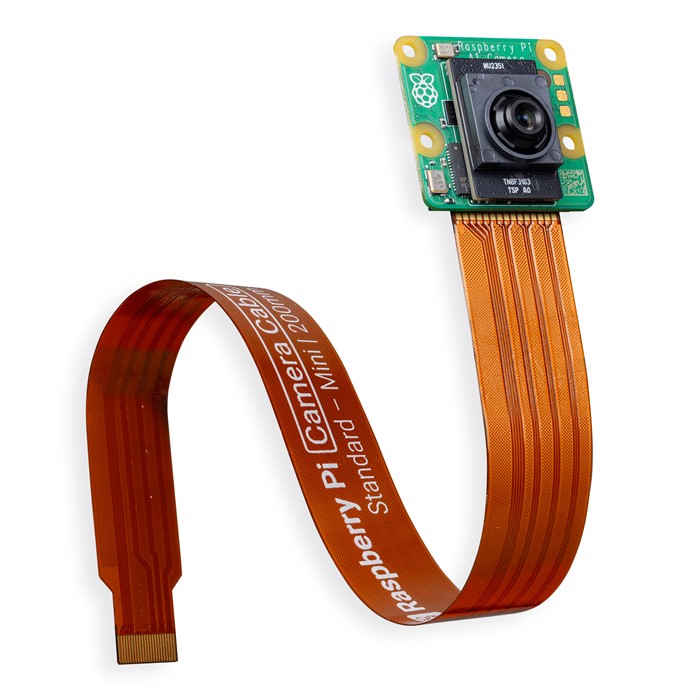

The Raspberry Pi AI Camera is a compact camera module from Raspberry Pi, based on the Sony IMX500 Intelligent Vision Sensor. IMX500 combines a 12-megapixel CMOS image sensor with on-board inferencing acceleration for a variety of common neural network models, enabling users to develop sophisticated vision-based AI applications without the need for a separate accelerator. The AI Camera transparently augments captured still images or video with tensor metadata, leaving the processor in the host Raspberry Pi free to perform other operations. Support for tensor metadata in the libcamera and Picamera2 libraries, and in the rpicam-apps application suite, make it easy for beginners to use, while offering advanced users unparallelled power and flexibility.

The Raspberry Pi AI Camera is compatible with all Raspberry Pi computers. The PCB outline and mounting hole locations are identical to those of Raspberry Pi Camera Module 3, while the overall depth is greater to accommodate the larger IMX500 sensor and optical sub-assembly.

Sensor: Sony IMX500
Resolution: 12.3 megapixels
Sensor size: 7.857 mm (type 1/2.3)
Pixel size: 1.55 μm × 1.55 μm
Horizontal/vertical: 4056 × 3040 pixels
IR cut filter: Integrated
Autofocus system: Manual adjustable focus
Focus range: 20 cm – ∞
Focal length: 4.74 mm
Horizontal field of view: 66 ±3 degrees
Vertical field of view: 52.3 ±3 degrees
Focal ratio (F-stop): F1.79
Infrared sensitive: No
Output: Image (Bayer RAW10), ISP output (YUV/RGB), ROI, metadata
Input tensor maximum size: 640(H) × 640(V)
Input data type: 'int8' or 'uint8'
Memory size: 8388480 bytes for firmware, network weight file, and working memory
Framerate: 2×2 binned: 2028×1520 10-bit 30fps
Full resolution: 4056×3040 10-bit 10fps
Dimensions: 25 × 24 × 11.9 mm
Ribbon cable length: 200 mm
