Raspberry Pi High Quality Camera

by Raspberry Pi
Price: $50.00


  • Sensor: Sony IMX477R stacked, back-illuminated sensor
  • 12.3 megapixels
  • Output: RAW12/10/8, COMP8
  • Lens standards: C-mount /CS-mount
  • C-CS adapter included


Product Description
Important Note: A lens is required and not included


The Raspberry Pi High Quality Camera is the latest camera accessory from Raspberry Pi. It offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C- and CS-mountform factors. Other lens form factors can be accommodated using third-party lens adapters.

The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computerfrom Raspberry Pi 1 Model B onwards, using the latest software release from www.raspberrypi.org .

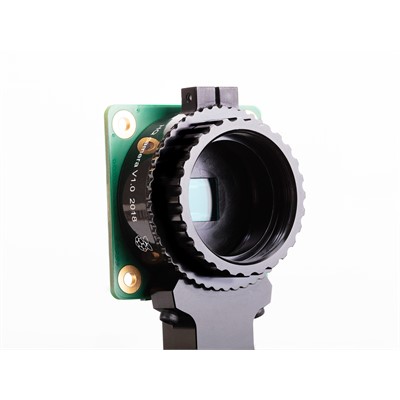

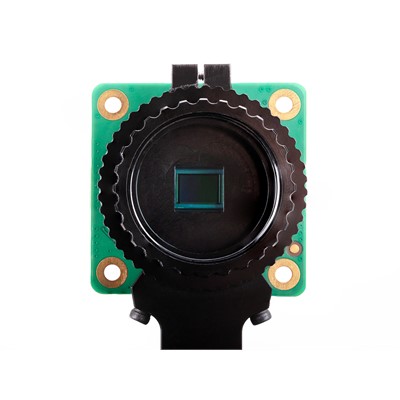

The package comprises a circuit board carrying a Sony IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, a milled aluminium lens mount with integrated tripod mount and focus adjustment ring, and a C- to CS-mount adapter.
